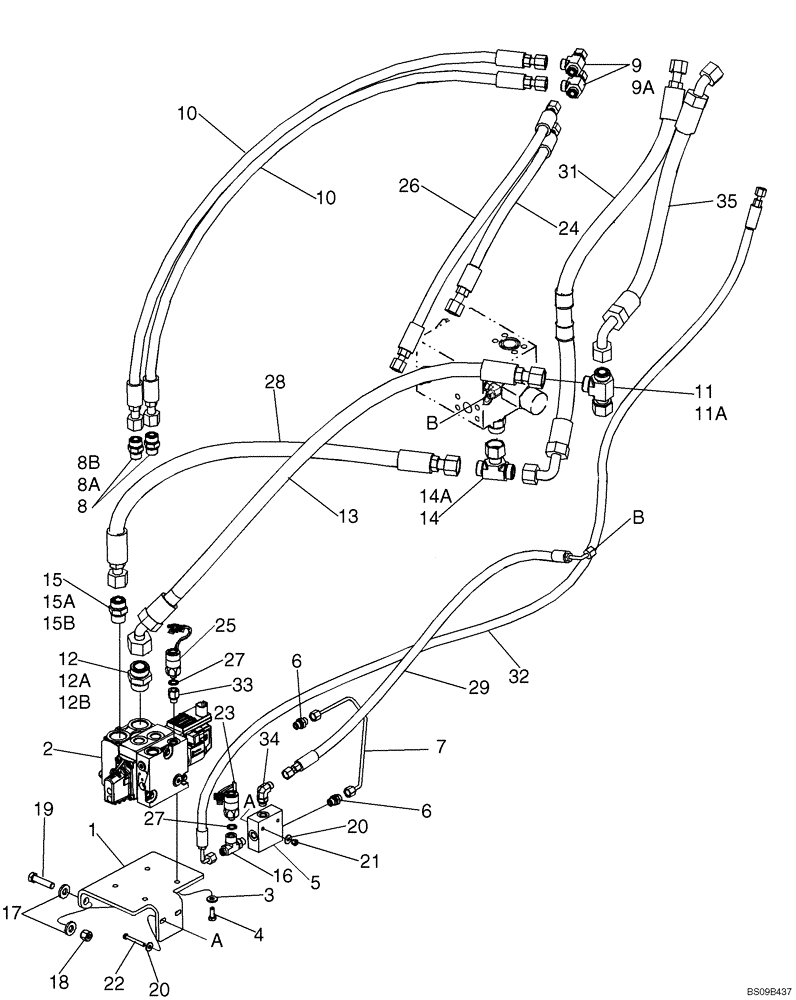

Запчасти Case 821E (05-14) - JOYSTICK STEERING - HYDRAULICS (05) - STEERING

1

87739320

BRACKET

Joystick Steering Valve

1шт.

2

87477003

VALVE

PVG32, Joystick Steering Proportional; See Figure 05-18

1шт.

3

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

5

87719987

VALVE

PVFC, See Figure 05-19

1шт.

6

87661868

HYD CONNECTOR

2шт.

7

87477378

TUBE,0.25" OD

Steering

1шт.

8

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

Incl. Refs. 8A, 8B

2шт.

8a

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

8b

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 9A

2шт.

9a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

10

84165884

HOSE ASSY.

Steering Cylinder Pressure, 1300 mm (51 - 3/8 in)

2шт.

11

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl. Ref. 11A

1шт.

11a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

3шт.

12

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. Refs. 12A, 12B

1шт.

12a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.

12b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

13

87739325

HOSE ASSY.

Return, 1025 mm (40 - 23/64 in)

1шт.

14

87328818

TEE

Incl. Ref. 14A

1шт.

14a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

15

86579682

HYD CONNECTOR,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl. Refs. 15A, 15B

1шт.

15a

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

15b

76088599

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3/4 ID x 1/16; Face Seal

1шт.

16

87477375

FITTING

1шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

19

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

3шт.

20

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

21

832-10406

NUT,M6 x 1, Cl 8

2шт.

22

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

23

87476564

PRESSURE SWITCH

Steering Pressure

1шт.

24

87754535

HOSE ASSY.

RH Rod, 470 mm (18 - 1/2 in)

1шт.

25

87484492

PRESSURE SWITCH

Pilot Pressure

1шт.

26

87754534

HOSE ASSY.

RH Base, 670 mm (26 - 3/8 in)

1шт.

27

396471A1

SEAL,11.71mm ID x 19.3mm OD x 1.68mm Thk

12 mm

2шт.

28

84166698

HOSE ASSY.

Valve Suction, 875 mm (34 - 7/16 in)

1шт.

29

87478817

FUEL HOSE,9.53 mm ID x 305.00 mm

Steering

1шт.

31

84147675

HYDRAULIC HOSE

Steering Supply, 950 mm (37 - 13/32 in)

1шт.

32

87470640

HOSE ASSY.

Steering, 1891 mm (74 - 7/16 in)

1шт.

33

87487329

FITTING,M14 x 1.5 ORB x M12 x 1.5 ORB

Reducer

1шт.

34

84176570

FITTING

90 deg.

1шт.

35

87755835

HOSE ASSY.

Steering Return; 530 mm (20 - 7/8 in)

1шт.
