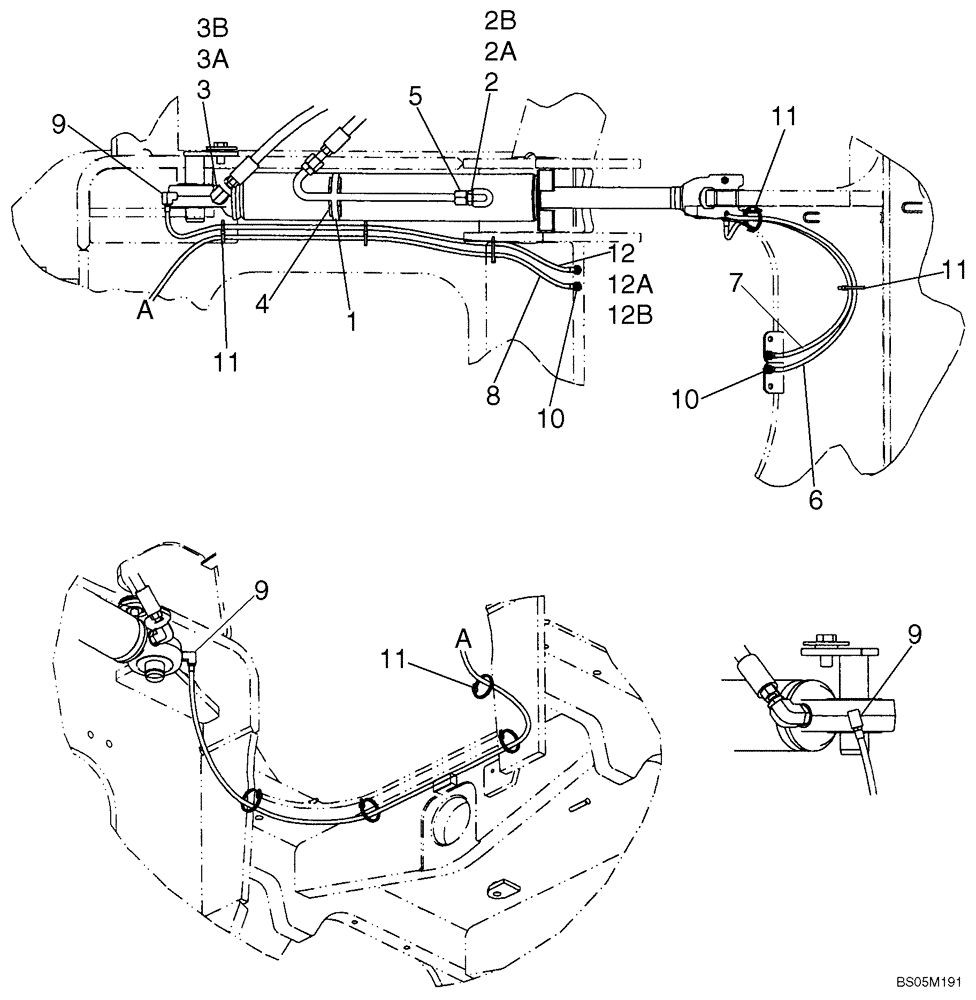

Запчасти Case 821E (05-11) - STEERING, STANDARD - HYDRAULICS - CYLINDER (05) - STEERING

REF

INSTRUCTION

VIEWS F AND SECTION E-E

1шт.

1

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

2шт.

2

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 2A, 2B

2шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 3A, 3B

1шт.

3a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

8500483

BLOCK

Clamp

2шт.

5

8602591

HYD TUBE

Steering Cylinder

2шт.

6

313682A1

FLEXIBLE HOSE

1320 mm (51 31/32 in); Grease; If Used

1шт.

7

313683A1

FLEXIBLE HOSE

855 mm (33 21/32 in); Grease; If Used

1шт.

8

318013A1

FLEXIBLE HOSE,4.8mm ID x 2723mm L

2723 mm (107 13/64 in); Grease

1шт.

9

328082A1

ELBOW

90 Degree

2шт.

10

F53473

LOCK NUT,1/8-27 NPSM

Hex

2-4шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

7-10шт.

12

L54694

HOSE,4.8mm ID x 1041mm L

Grease; Incl. 12A, 12B

1шт.

12a

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

12b

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
