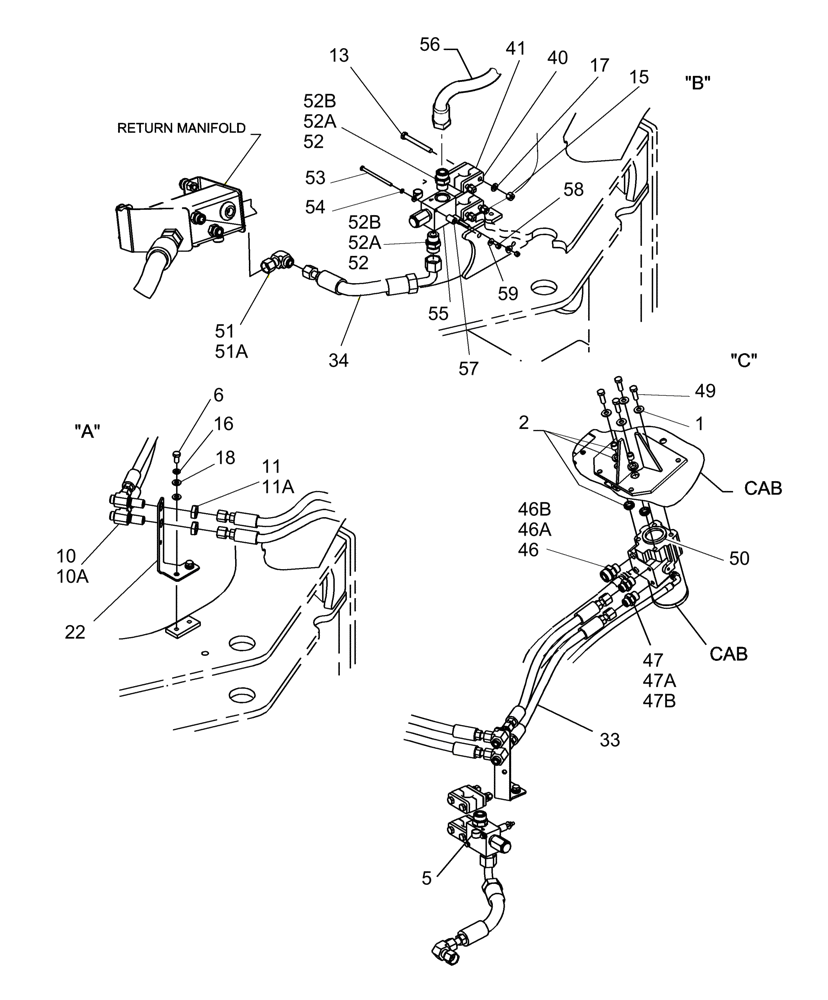

Запчасти Case 821E (05-10) - STEERING, STANDARD - HYDRAULICS - CYLINDER (05) - STEERING

REF

INSTRUCTION

VIEWS A, B, AND C

1шт.

1

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

5

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

If Used

1шт.

5

515-21190

CLAMP,3/4", Insul, 1/4" Bolt

If Used

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

10

701-423

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

Incl. 10A

2шт.

10a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

3шт.

11

701-903

NUT,13/16" - 16

Incl.11A

2шт.

11a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

13

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

18

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

22

8602342

BRACKET

Bulkhead

1шт.

33

87398127

HOSE ASSY.

912mm ( 36 in ); Base; LH

2шт.

34

87563042

HOSE ASSY.

Steering Return, 350 mm (13 - 25/32 in)

1шт.

40

367658A1

PLATE

Clamp Cover

4шт.

41

372453A1

BLOCK

Tube Mounting

2шт.

46

700-107

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl. 46A, 46B

1шт.

46a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

46b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

47

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 47A, 47B

1шт.

47a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

47b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

49

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

50

76043957

GASKET

Steering Orbitol

1шт.

51

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 51A

1шт.

51a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

52

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 52A, 52B

2шт.

52a

14438185

O-RING,24mm ID x 3mm

1шт.

52b

70923843

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

53

827-6100

BOLT,Hex, M6 x 100mm, Cl 10.9

2шт.

54

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

55

87427823

VALVE PRESSURE RELIE

1шт.

56

87563041

HOSE ASSY.

Steering Return, 637 mm (25 - 5/64 in); Models Without Joystick Steering

1шт.

57

87563043

SPACER

SPACER

2шт.

58

832-10406

NUT,M6 x 1, Cl 8

2шт.

59

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.
