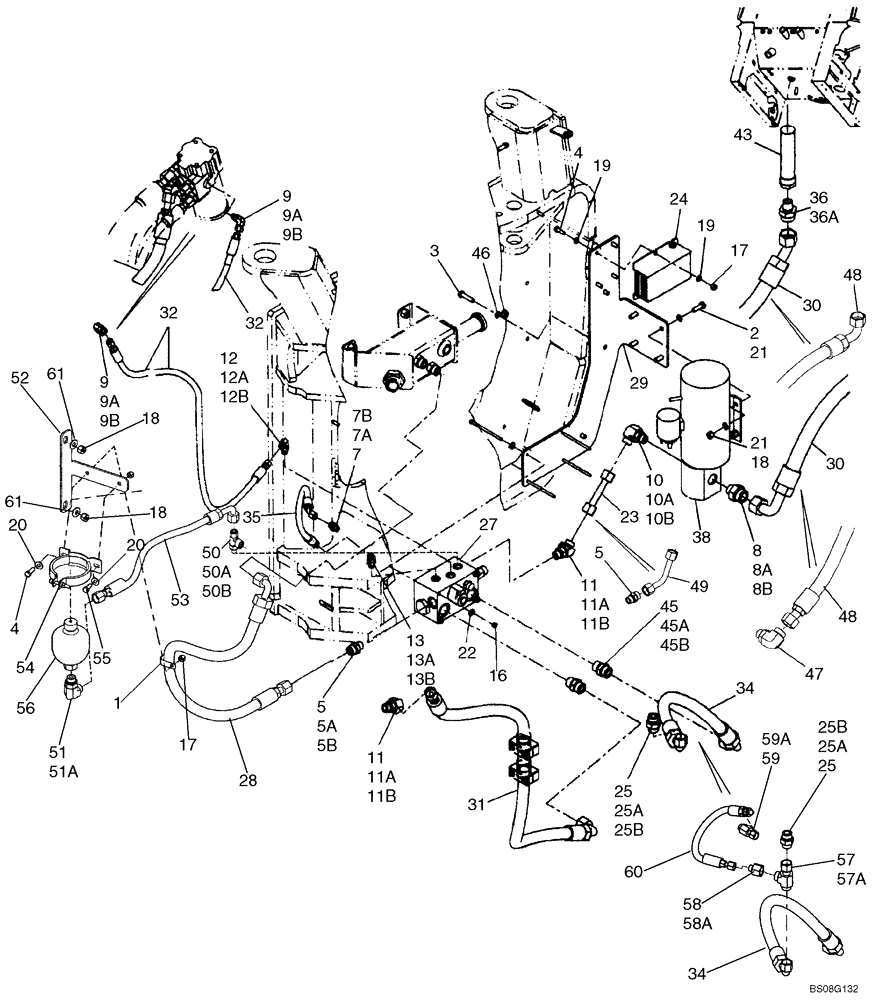

Запчасти Case 821E (05-08) - STEERING - HYDRAULICS - AUXILIARY (05) - STEERING

1

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

3

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

5

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 5A, 5B

1-2шт.

5a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 7A, 7B

1шт.

7a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

8

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 8A, 8B; If Used

1шт.

8a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

8b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss End

1шт.

9

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl.9A, 9B

1шт.

9a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

9b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 10A, 10B

1шт.

10a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

11

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 11A, 11B; If Used

2шт.

11a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

11b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

12

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 12A, 12B

1шт.

12a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

13

700-392

ELBOW,45 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 13A, 13B

1шт.

13a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

13b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

15

814-6110

BOLT,Hex, M6 x 1 x 110mm, Cl 8.8

4шт.

16

832-10406

NUT,M6 x 1, Cl 8

4шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4-6шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

20

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1-4шт.

21

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

22

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

23

8500249

HYD TUBE

Auxiliary Pressure; If Used

1шт.

24

8603171

MODULE

Auxiliary Steering

1шт.

25

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 25A, 25B

1-4шт.

25a

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

25b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

27

87609806

MANIFOLD

Auxiliary Steering; Replaces 87341296; See Figure 05-21

1шт.

28

87563046

HOSE

Auxiliary Tank

1шт.

29

87346069

BRACKET

Auxiliary Steering

1шт.

30

87346078

HOSE ASSY.

Auxiliary Suction; 854mm ( 33-1/2 in )

1шт.

31

87617167

HOSE ASSY.

Auxiliary Pressure; 1679mm ( 66 in ) Replaces 87398124

1шт.

32

87519866

HOSE ASSY.

Steering Pressure; 1747 mm ( 69 in )

1шт.

34

87379709

HOSE ASSY.

Pressure 855mm ( 34 in )

1шт.

35

87379711

HOSE ASSY.

Steering Load Sense; 774mm ( 31 in )

1шт.

36

87433494

HYD CONNECTOR

Straight Thread ORFS To NPT; Incl. 36A

1шт.

36a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

38

87581480

ELECTRIC PUMP

Auxiliary Steering; Replaces 380013A1; See Figure 05-17

1шт.

43

L129303

FILTER SCREEN

Hydraulic Tank

1шт.

45

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 45A, 45B

1шт.

45a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

45b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

46

895-18012

WASHER,13.5mm ID x 20mm OD x 2mm Thk

3шт.

47

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

If Used

1шт.

48

87592638

HOSE ASSY.

Auxiliary Suction, 888 mm (36 - 31/32 in); If Used

1шт.

49

87591383

TUBE,13.11 mm ID x 15.88 mm OD x 98.8, 80.9 mm L

If Used

1шт.

REF

INSTRUCTION

THE FOLLOWING PARTS MAY OR MAY NOT BE USED

1шт.

50

87725860

FITTING

L, Incl. Refs. 50A, 50B

1шт.

50a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

50b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

51

87725875

FITTING

90 Degree, Incl. Ref. 51A

1шт.

51a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

52

87741113

BRACKET

Auxiliary Steering Accumulator

1шт.

53

87472244

HOSE ASSY.

Auxiliary Steering Accumulator, 550 mm (21 - 2/3 in)

1шт.

54

87750434

CLAMP

Assy.

1шт.

55

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

56

87746283

ACCUMULATOR

Aux. Steering

1шт.

57

701-433

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. Ref. 57A

1шт.

57a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

2шт.

58

87612571

FITTING

ADAPTER, Reducer With Orifice Plug; Incl. Ref. 58A

1шт.

58a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

59

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. Ref. 59A

1шт.

59a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

60

87367960

HOSE ASSY.

Priority, 356 mm (14 - 1/64 in)

1шт.

61

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
