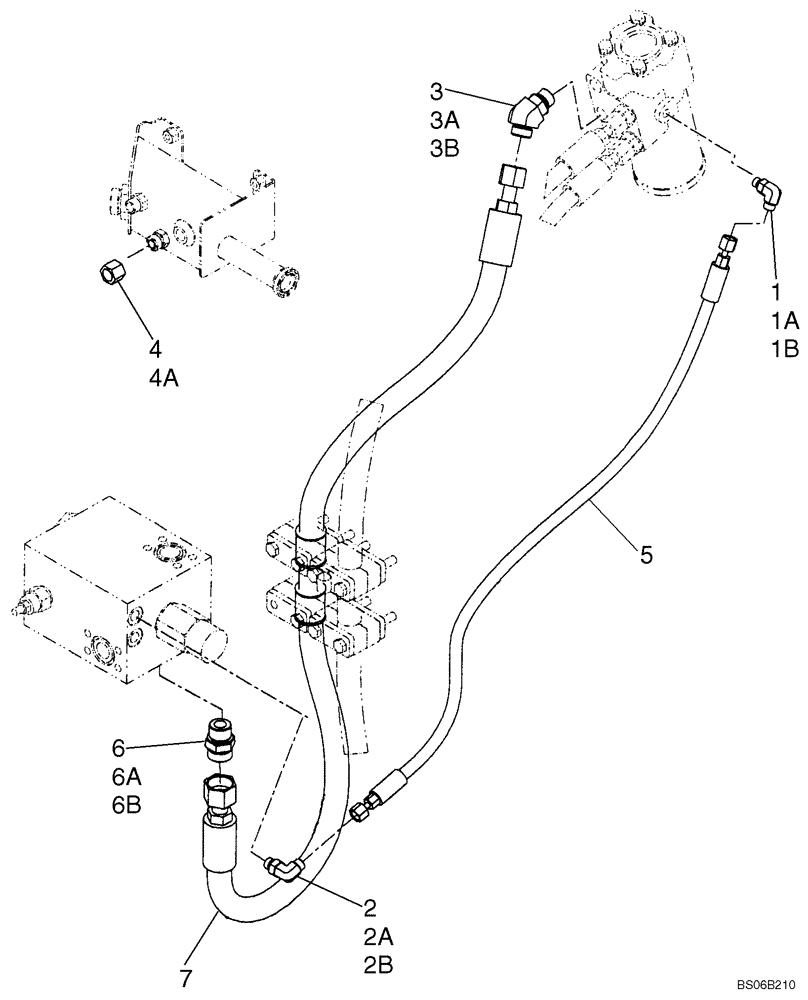

Запчасти Case 821E (05-07) - STEERING - HYDRAULICS (05) - STEERING

1

700-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 1A, 1B

1шт.

1a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

1b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 2A, 2B

1шт.

2a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

2b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

3

700-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl.3A, 3B

1шт.

3a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

701-906

CAP,1" - 14

Incl. 4A

1шт.

4a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

5

87519867

HOSE ASSY.

Load Sense, 939mm (37 in)

1шт.

6

87534063

CHECK VALVE,1-3/16" - 12 ORFS x M27 x 2 ORB

Incl. 6A, 6B

1шт.

6a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

87617166

HOSE ASSY.

Pressure, 1411mm ( 55-1/2 in ); Replaces 87398125

1шт.
