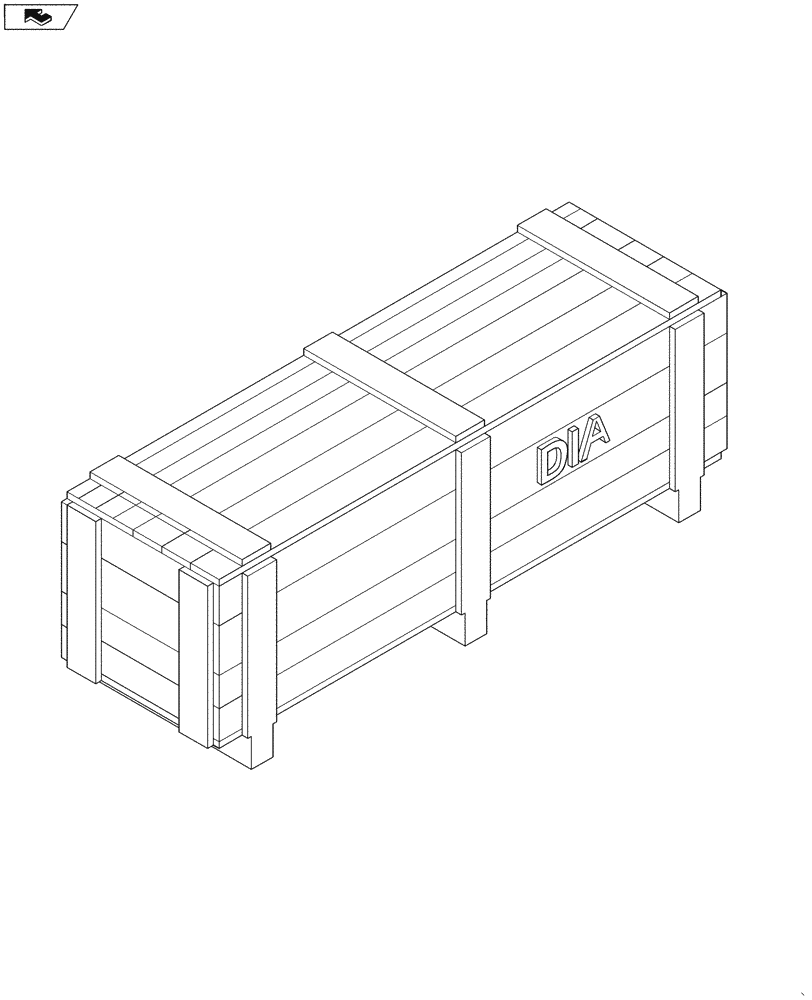

Запчасти Case 821E (88.055.04) - DIA KIT, COLD WEATHER PACKAGE - EU (04) - ELECTRICAL SYSTEMS

1

472003011

FIP KIT

Cold Weather Package - Eu, Incl 2 - 33

1шт.

2

84280357

INSTRUCTION

Sheet Cold Weather 821e Eu

1шт.

3

2854701

GASKET,0.8mm Thk

Grid Heater

1шт.

4

440038A1

JUNCTION BLOCK

Fuse

1шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

10

8501311

FUSE,150A, Megaval

Bussmann Amg

1шт.

11

8602004

HEATER

1шт.

12

87300128

HEATER,24V, 2400W

Grid Assembly

1шт.

13

87348713

CABLE

Grid Heater

1шт.

14

87350062

CABLE

Grid Heater B

1шт.

15

87354000

CABLE,2135mm L

1шт.

16

87398558

CABLE

Ground

1шт.

17

87435522

FILTER ASSY

Water, Sep With Heater

1шт.

18

87453782

FLEXIBLE HOSE

Fan To Bypass

1шт.

19

892-11008

LOCK WASHER,8mm ID

Spring

2шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

22

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

23

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

24

J905114

ELECTRIC CABLE

Heater

1шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

26

L124221

SUPPORT

Bracket,Battery

2шт.

27

L51769

BATTERY, WET

Battery, 12v900cca Post Bhc4daw 76086862

2шт.

28

390464A1

1шт.

29

8602156

HEATER

1шт.

30

87356845

Grid Heater

1шт.

31

87362232

Thermal Bypass

1шт.

32

87435520

1шт.

33

8603092

WARNING DECAL,55mm x 95mm H

3шт.
