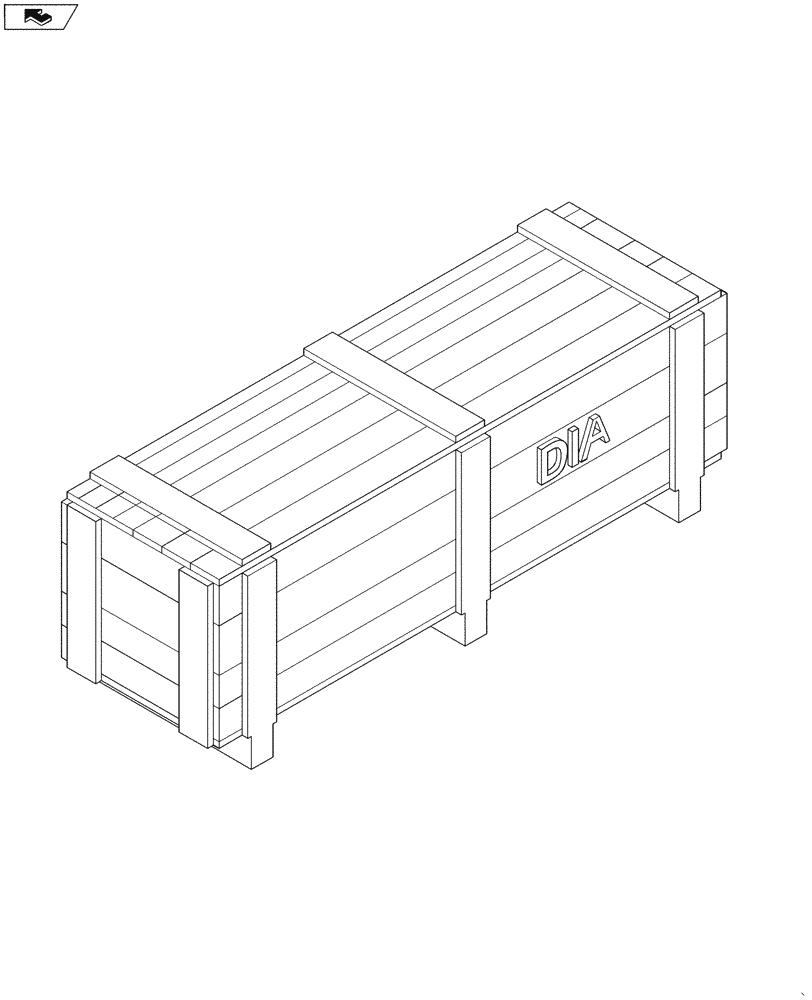

Запчасти Case 821E (88.055.03) - DIA KIT, FIELD COLD WEATHER PACKAGE - CASE -EU (04) - ELECTRICAL SYSTEMS

1

87547235

CONSTRUCTION DIA

Kit, Field Cold Weather Packing - Case - EU, Incl 2 - 38

1шт.

2

2854701

GASKET,0.8mm Thk

Grid Heater

1шт.

3

367489A1

BLOCK

Tube Mounting

3шт.

4

440038A1

JUNCTION BLOCK

Fuse, Cover

1шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

7

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Union

1шт.

8

701-415

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x 1" - 14 Male ORFS

1шт.

9

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

832-10406

NUT,M6 x 1, Cl 8

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

8501311

FUSE,150A, Megaval

1шт.

15

8602004

HEATER

1шт.

16

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

4шт.

17

87300128

HEATER,24V, 2400W

Grid Assembly

1шт.

18

87326981

BY-PASS VALVE

Thermal

1шт.

19

87348713

CABLE

Grid Heater

1шт.

20

87350062

CABLE

Grid Heater

1шт.

21

87354000

CABLE,2135mm L

1шт.

22

87362185

HOSE ASSY.

Bypass To Cooler

1шт.

23

87398129

HOSE ASSY.

Cooler To Junction

1шт.

24

87398558

CABLE

Ground

1шт.

25

87435522

FILTER ASSY

Water, Separate W/Heater

1шт.

26

87453782

FLEXIBLE HOSE

Fan To Bypass

1шт.

27

87453784

FLEXIBLE HOSE

Bypass To Junction

1шт.

28

87453786

FLEXIBLE HOSE

Junction To Filter

1шт.

29

892-11008

LOCK WASHER,8mm ID

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

32

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

33

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

34

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

35

J905114

ELECTRIC CABLE

Engine Heater

1шт.

36

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

37

L124221

SUPPORT

Bracket, Battery

2шт.

38

L51769

BATTERY, WET

2шт.
