(88.055.01) - DIA KIT, FIELD 24V TO 12V CONVERTER

Запчасти Case 821E (88.055.01) - DIA KIT, FIELD 24V TO 12V CONVERTER (04) - ELECTRICAL SYSTEMS

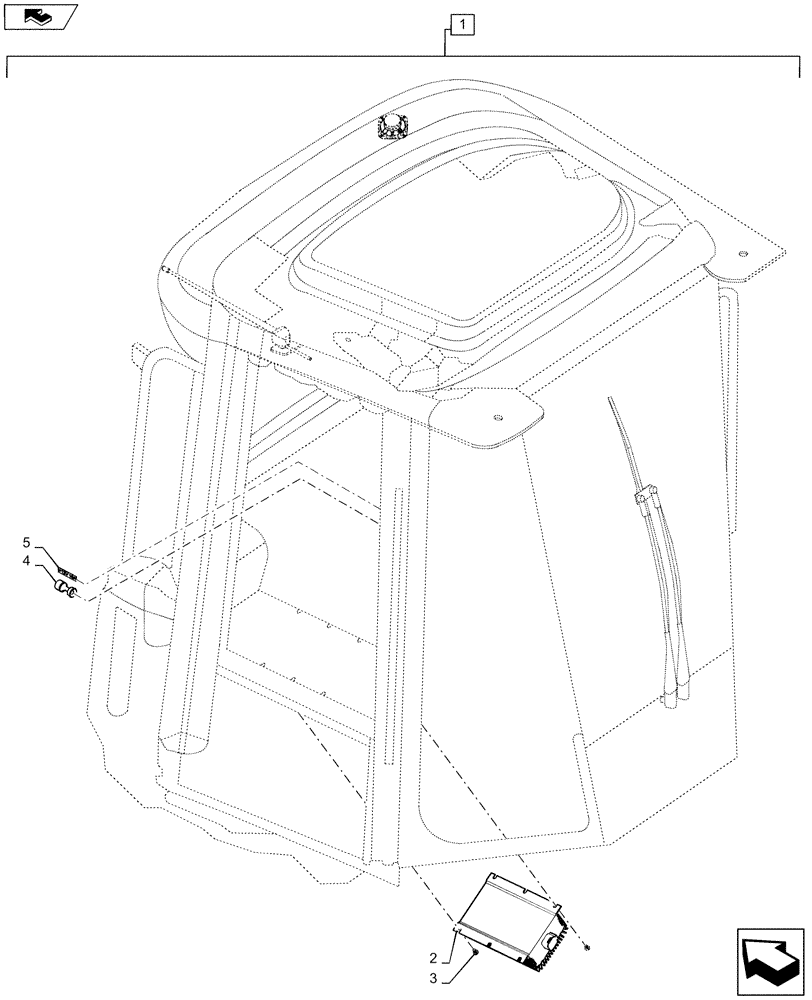

Схема запчастей Case 821E - (88.055.01) - DIA KIT, FIELD 24V TO 12V CONVERTER (04) - ELECTRICAL SYSTEMS
1
home
2
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87547223

CONSTRUCTION DIA

Kit, Field 24v To 12v Converter, Incl 2 - 5

1шт.

2

87318825

CONVERTER,24V To 12V

Power 24v/12v

1шт.

3

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

4шт.

4

388813A1

OUTLET

Connector, Electric Assembly, 10a 12vdc

2шт.

5

365935A2

DECAL

12v, 10a

2шт.
