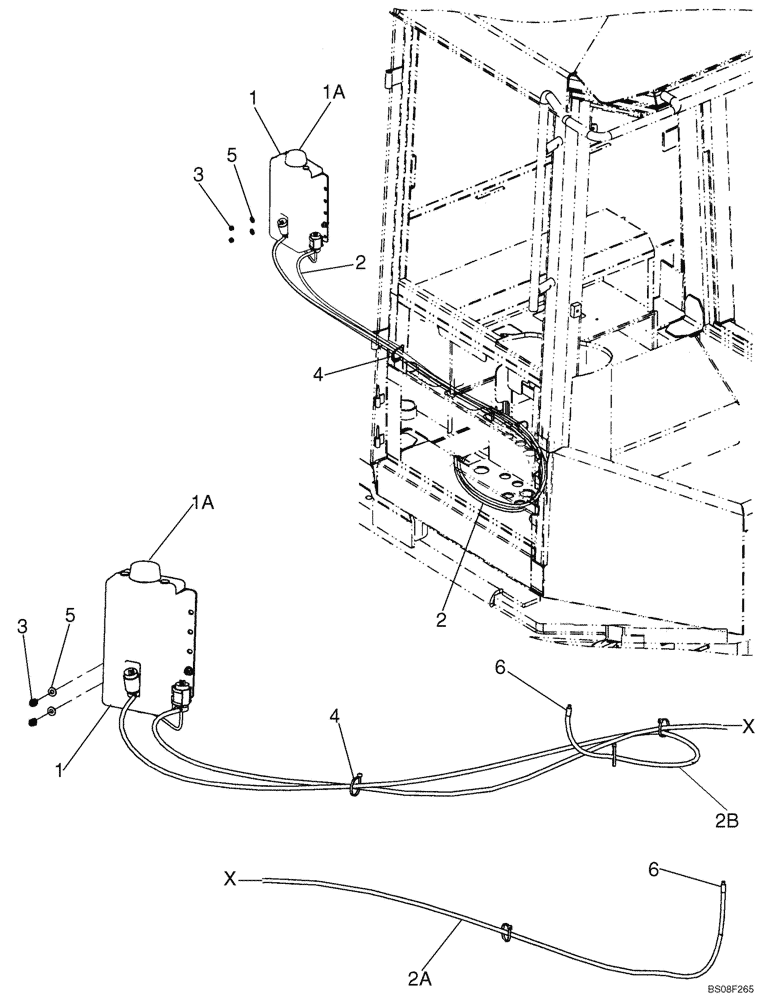

Запчасти Case 821E (04-24) - WINDSHIELD WASHER MOUNTING (04) - ELECTRICAL SYSTEMS

1

371185A1

RESERVOIR, WINDSHIEL,4.75L

Windshield Washer; Front; Incl. Pumps and Cap

1шт.

1

48042633

PUMP,24V

2шт.

1a

87439461

CAP

1шт.

2

8500662

HOSE WASHER

2540mm (100 in); Pump To Check Valve; Cut From 4-1056T1; If Used

2шт.

2a

31-2370

HOSE,4.7752 mm ID x 3302.00 mm

Front Windshield Washer; 130 in (3302 mm); Cut From Bulk Hose 04-1056T1

1шт.

2b

384138A1

HOSE,4.77 mm ID x 102.00 mm

Rear Windshield Washer, Cut From Bulk Hose 04-1056T1

1шт.

3

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Replaces L18331 Strap Used On Some Models

2-4шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

6

84037530

VALVE

Washer Fluid; Replaces 324203A1

2шт.
