Запчасти Case 721E (04-17) - ELECTRICAL - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS

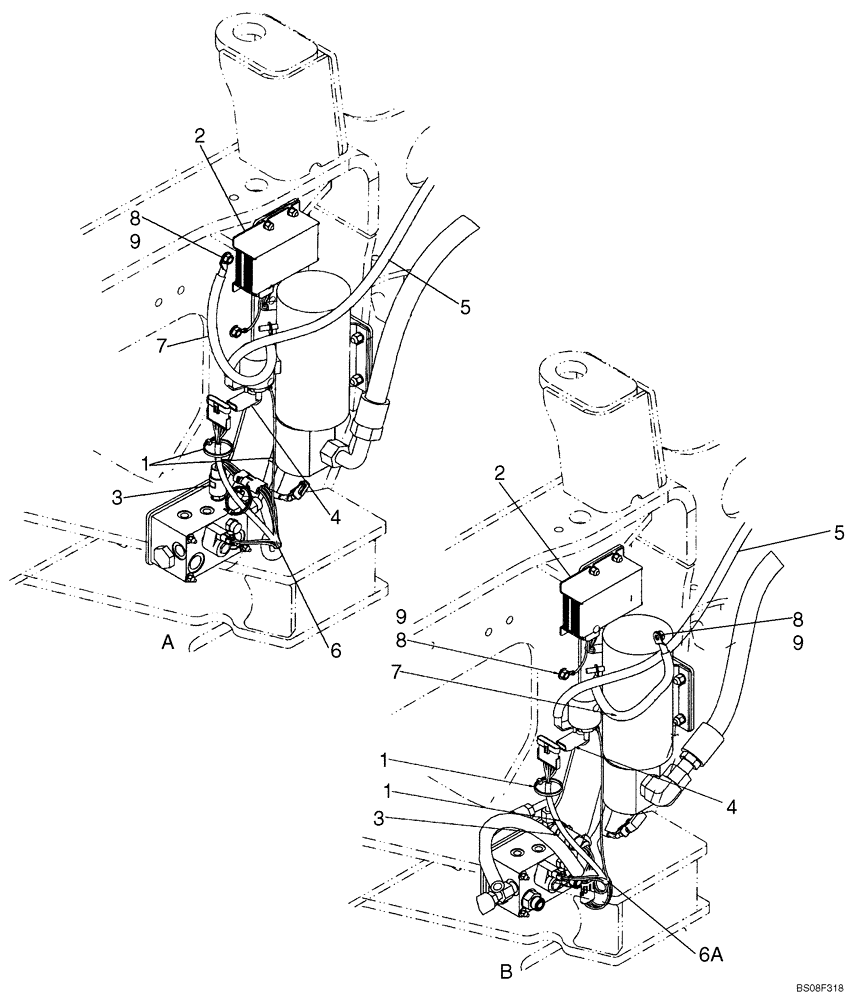

Схема запчастей Case 721E - (04-17) - ELECTRICAL - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS
2
9
1
5
8
3
4
9
8
3
9
6a
1
8
7
7
4
6
2
1
5

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

VIEW A SHOWS SYSTEM WITHOUT ACCUMULATOR, VIEW B SHOWS SYSTEM WITH ACCUMULATOR

1шт.

1

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie

4шт.

2

8603171

MODULE

Auxiliary Steering

1шт.

3

398888A1

PRESSURE SWITCH

Auxiliary Steering Pressure Switch

1шт.

4

L126713

BOOT

Electrical

1шт.

5

87358691

CABLE,3256mm L

Auxiliary Steering To Starter

1шт.

6

87323967

WIRE HARNESS

Secondary Steering Module; See Illustration Reference A

1шт.

6a

87731986

HARNESS

WIRE, Secondary Steering Module; If Used; See Illustration Reference B

1шт.

7

L129707

NEG BATTERY CABLE

1шт.

8

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

9

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass

2шт.

10

84328472

HARNESS

Auxiliary Steering, Not Shown, See Fig. 04-17A

1шт.

Выбрано товаров: 12
