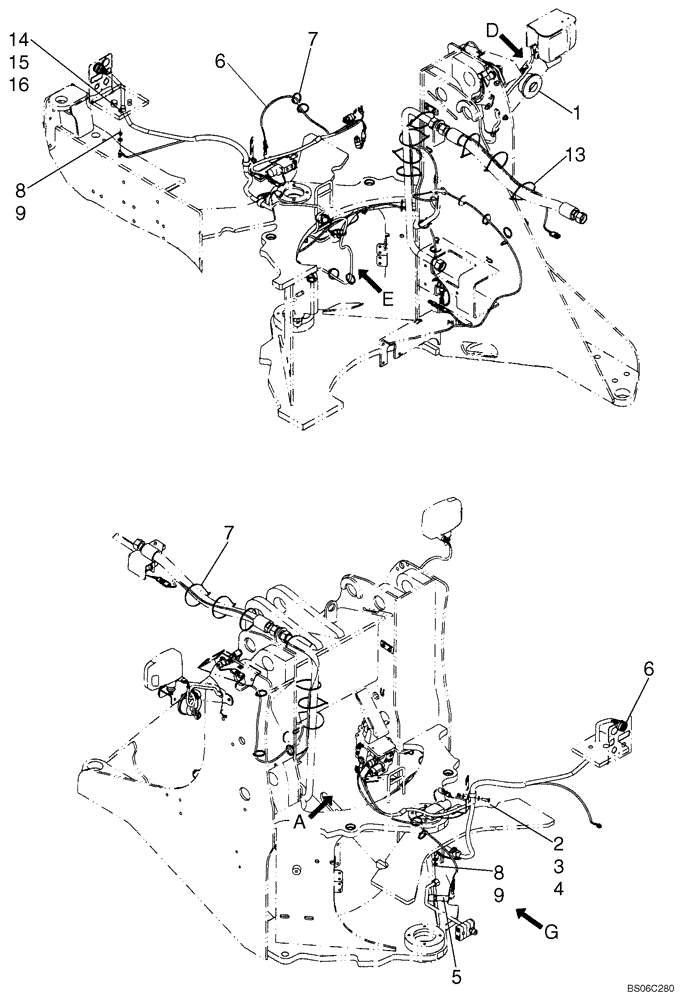

Запчасти Case 721E (04-12) - HARNESS, FRONT (04) - ELECTRICAL SYSTEMS

1

87382200

HORN

300 HZ

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

5

87549589

SWITCH

Brake Declutch; Replaces 377898A3

1шт.

6

87536817

WIRE HARNESS

Front

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Not Illustrated

24шт.

8

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass; Grounds

3шт.

9

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5; Brass; Grounds

3шт.

13

19-135

CABLE TIE

CABLE STRAP 15 in

4шт.

14

515-21159

CLAMP,15.9mm ID, 7.1mm Bolt Hole, P Type

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

16

832-10406

NUT,M6 x 1, Cl 8

1шт.
