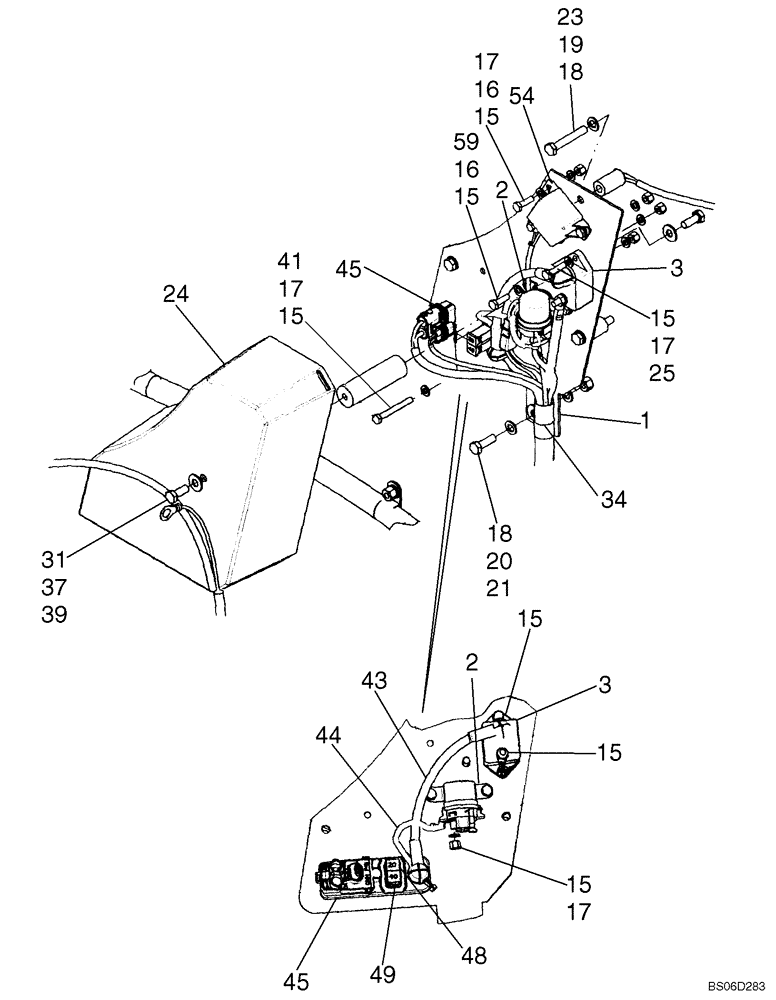

Запчасти Case 721E (04-11) - HARNESS, REAR - RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

87348711

PLATE

Electrical Mounting

1шт.

2

87351908

SOLENOID SWITCH

Starting

1шт.

3

87315269

BREAKER

105A Auto Reset; If Used

1шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8-16шт.

16

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

17

832-10406

NUT,M6 x 1, Cl 8

5-7шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

19

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

3шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

23

82024562

SPACER,8.5mm ID x 18mm OD x 31.6mm L

3шт.

24

87353999

COVER

Relay

1шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

If Used

2шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

34

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

3шт.

37

404635A1

SPACER

1шт.

39

827-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

41

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

1шт.

43

87350064

CABLE

Cab B+; If Used

1шт.

44

87350066

CABLE

Starter Relay

1шт.

45

87318627

MODULE

Power Relay

1шт.

48

87327335

FUSE,20 Amp

32V 20A

1шт.

49

87327346

FUSE,40A, Green

32V 40A

1шт.

54

1546485C1

RELAY,24V

Power

1шт.

59

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.
