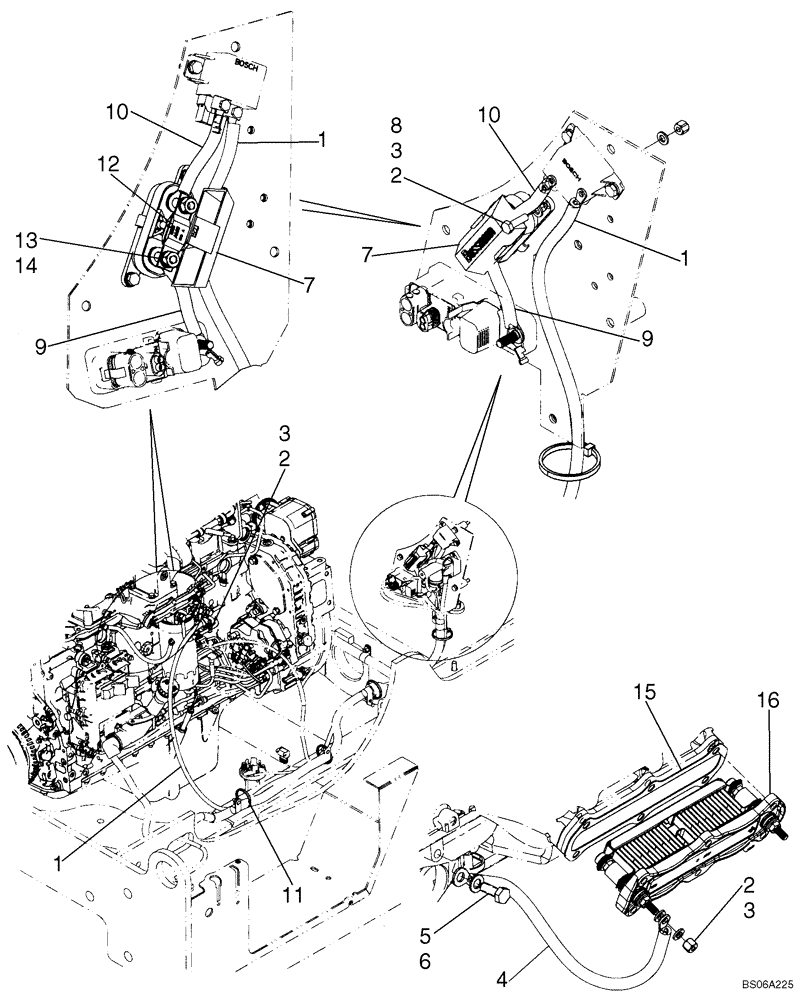

Запчасти Case 721E (04-09) - HARNESS - ENGINE - GRID HEATER (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

WITH GRID HEATER

1шт.

1

87354000

CABLE,2135mm L

Grid Heater; Power

1шт.

2

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

3

832-10406

NUT,M6 x 1, Cl 8

4шт.

4

87398558

CABLE

Grid Heater; Ground

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

7

440038A1

JUNCTION BLOCK

Block Fuse

1шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

1шт.

9

87350062

CABLE

Grid Heater; B+

1шт.

10

87348713

CABLE

Grid Heater

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

12

8501311

FUSE,150A, Megaval

150 Amp

1шт.

13

892-11008

LOCK WASHER,8mm ID

2шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

15

2854701

GASKET,0.8mm Thk

Air Intake

1шт.

16

87300128

HEATER,24V, 2400W

Iveco 24v

1шт.
