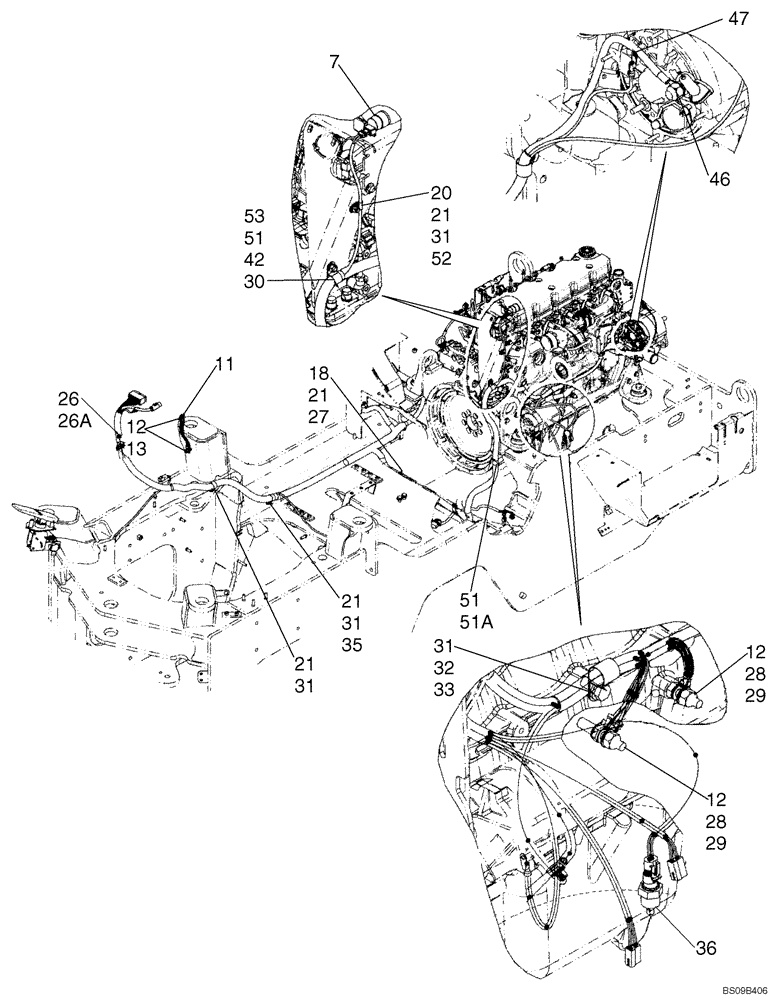

Запчасти Case 721E (04-08) - HARNESS - ENGINE (04) - ELECTRICAL SYSTEMS

7

279492A1

RESTRICTION SWITCH

Air Restriction

1шт.

11

L126051

GROUND STRAP

1шт.

12

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

Brass

2шт.

13

253347A1

NUT,Hex, M10 x 1.5

Brass

2шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

5шт.

21

832-10408

NUT,M8 x 1.25, Cl 8.8

5шт.

26

87731983

WIRE HARNESS

Engine; Replaces 87351752; Models With 87315269 105A Circuit Breaker, See Figure 04-11; If Used, Years: -11-JUL-10

1шт.

26

84191342

WIRE HARNESS

, Start Year: 12-JUL-10

1шт.

27

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

28

L127553

STUD

Brass

2шт.

29

L127555

NUT,Hex, 3/8" - 16

3/8; Brass

2шт.

30

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

31

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

1шт.

32

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1-2шт.

33

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

35

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

2шт.

36

321446A1

SENSOR

Engine Coolant

1шт.

42

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

46

425-107

NUT,7/16"-14, G5

1шт.

47

824-1404

NUT,M4, Cl 5

1шт.

51

515-24238

CLAMP,15/16", Insul, 7/16" Bolt

1-2шт.

51a

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

If Used

1шт.

52

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

1шт.

53

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.
