Запчасти Case 721E (04-07D) - CAB - FUSES AND RELAYS (04) - ELECTRICAL SYSTEMS

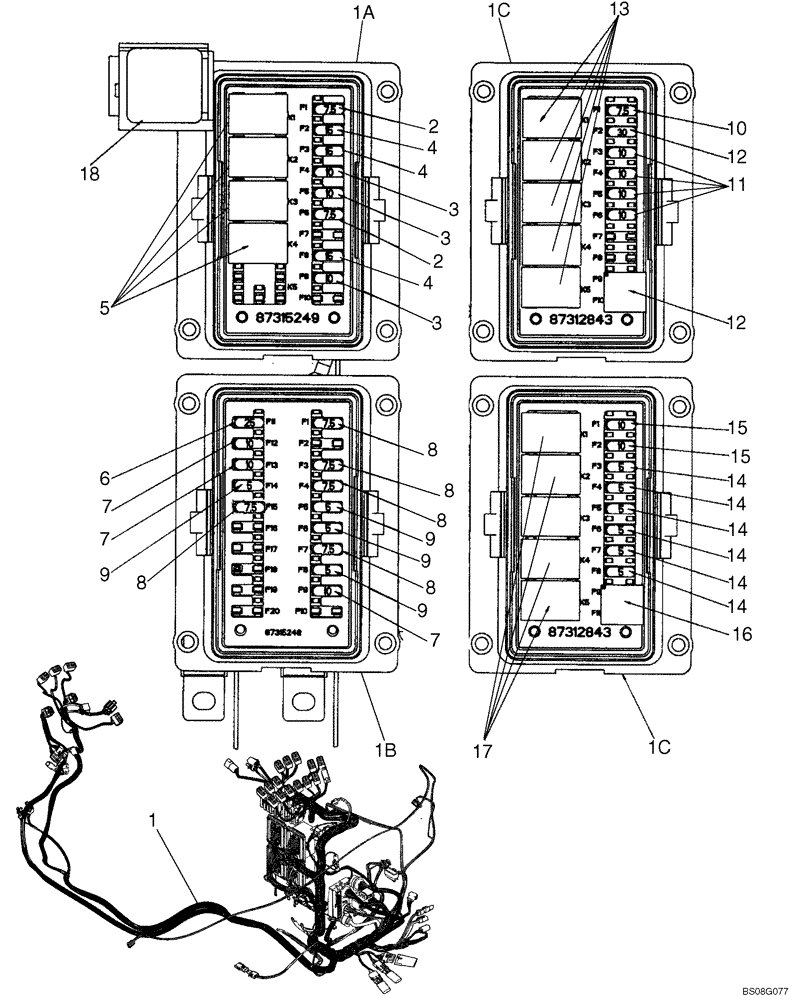

Схема запчастей Case 721E - (04-07D) - CAB - FUSES AND RELAYS (04) - ELECTRICAL SYSTEMS
9
17
7
8
14
1a
9
12
1
1b
14
7
8
2
9
2
7
4
6
16
4
14
10
4
14
9
18
8
3
13
1c
3
3
11
1c
14
14
8
8
12
15
15
5

Артикул

Название

Примечание

Количество

1

87748734

WIRE HARNESS

Cab Control Panel, Incl. Refs. 1A - 1C; Replaces 87517055

1шт.

1a

87315249

FUSE BOX

1шт.

1b

87315248

RELAY

FUSE BOX

1шт.

1c

87312843

FUSE BOX

2шт.

2

121411A1

FUSE,7.5A, Mini, Brown

Beacon/Dome Light (F1), Horn (F6)

2шт.

3

121412A1

FUSE,10A, Mini, Red

Brake Lights/Flasher (F4), Delay Power (F5), Diagnostic Plug (F9)

3шт.

4

121413A1

FUSE,15A, Mini, Blue

Work Lights (F2), Driving Lights (F3)

2шт.

5

87312626

RELAY,24V

Micro, 5-Pin 280 Series; Hood Up (K1), Hood Down (K2), Brake Lights (K3), Horn (K4)

4шт.

6

121415A1

FUSE,25A, Mini, Clear

Blower Motor (F11)

1шт.

7

121412A1

FUSE,10A, Mini, Red

Front Wiper/Wash (F12), Rear Wiper/Wash (F13), Fuel Shutdown (F9)

3шт.

8

121411A1

FUSE,7.5A, Mini, Brown

Trans. ECM (F1), Instrument Cluster (F3), Aux. Steering Ignition (F4), Flasher (F8), A/C And Clutch (F15)

4-5шт.

9

121410A1

FUSE,5A, Mini, Tan

Pilot/RC Solenoid (F5), Park Brake Solenoid (F6), Flasher (F8), Back-Up Alarm And Lights (F14)

4шт.

10

121411A1

FUSE,7.5A, Mini, Brown

Trans. ECM (F1)

1шт.

11

121412A1

FUSE,10A, Mini, Red

AIC Power (F3), 12V/10 Plug (F4, F5), Radio 12V (F6)

4шт.

12

87318986

RELAY,4 Pin, 24V

Ultra Micro, 4-Pin; Back-Up Alarm (F9/F10)

1шт.

13

87312626

RELAY,24V

Micro, 5-Pin 280 Series; Fr. Wiper High (K1), Fr. Wiper Low (K2), Pilot Control (K3), Ride Control (K4), A/C (K5)

4-5шт.

14

121410A1

FUSE,5A, Mini, Tan

High Beam LH (F3), High Beam RH (F4), Low Beam LH (F5) Low Beam RH (F6), Tail Left (F7), Tail Right/License Plate (F8)

6шт.

15

121412A1

FUSE,10A, Mini, Red

Front Floods (F1), Rear Floods (F2)

2шт.

16

87318986

RELAY,4 Pin, 24V

Ultra Micro, 4-Pin; Crank Control Relay (F9/F10)

1шт.

17

87312626

RELAY,24V

Micro, 5-Pin 280 Series; Voltmeter (K1), Neutral Start (K2), Crank Request (K3), Fan Reverser (K4), Parking Brake (K5)

4-5шт.

18

326845A1

RELAY,24V

1шт.
