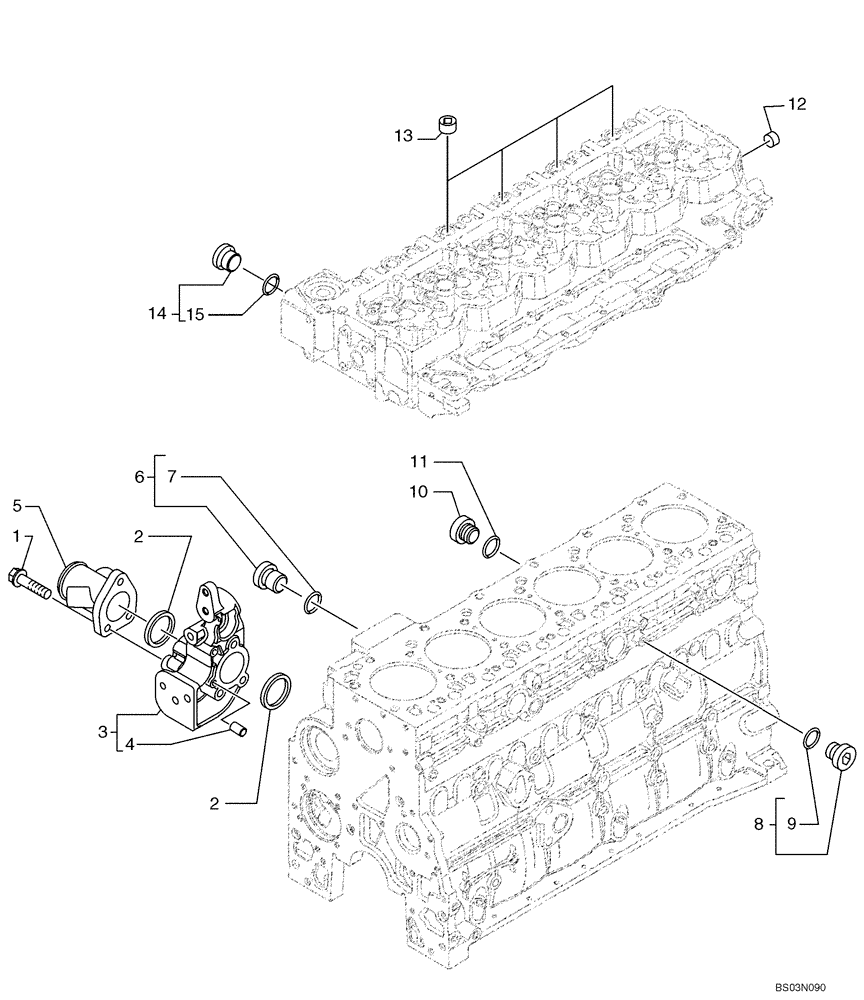

Запчасти Case 721E (02-38) - COOLING SYSTEM - ENGINE (02) - ENGINE

2852803

SCREW

M10 x 45; Not Illustrated

3шт.

2852480

SUPPORT

Compressor; Not Illustrated

1шт.

2852481

DOWEL,8.5mm ID

Not Illustrated

2шт.

1

2852325

SCREW

M10X80

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

2шт.

3

2852392

SUPPORT

Incl. 4

1шт.

4

4895576

DOWEL

2шт.

5

2852468

TUBE

1шт.

6

2852496

PLUG,M18 x 1.5

Incl. 7

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

Incl. 9

1шт.

9

4895625

O-RING,13.3mm ID x 2.2mm Width

1шт.

10

2852496

PLUG,M18 x 1.5

2шт.

11

4899824

SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk

2шт.

12

4895079

PIPE PLUG,3/4"-14

2шт.

13

4895078

PIPE PLUG,1/2"-14

4шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

Incl. 15

1шт.

15

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
