Запчасти Case 721E (02-37) - PISTONS (02) - ENGINE

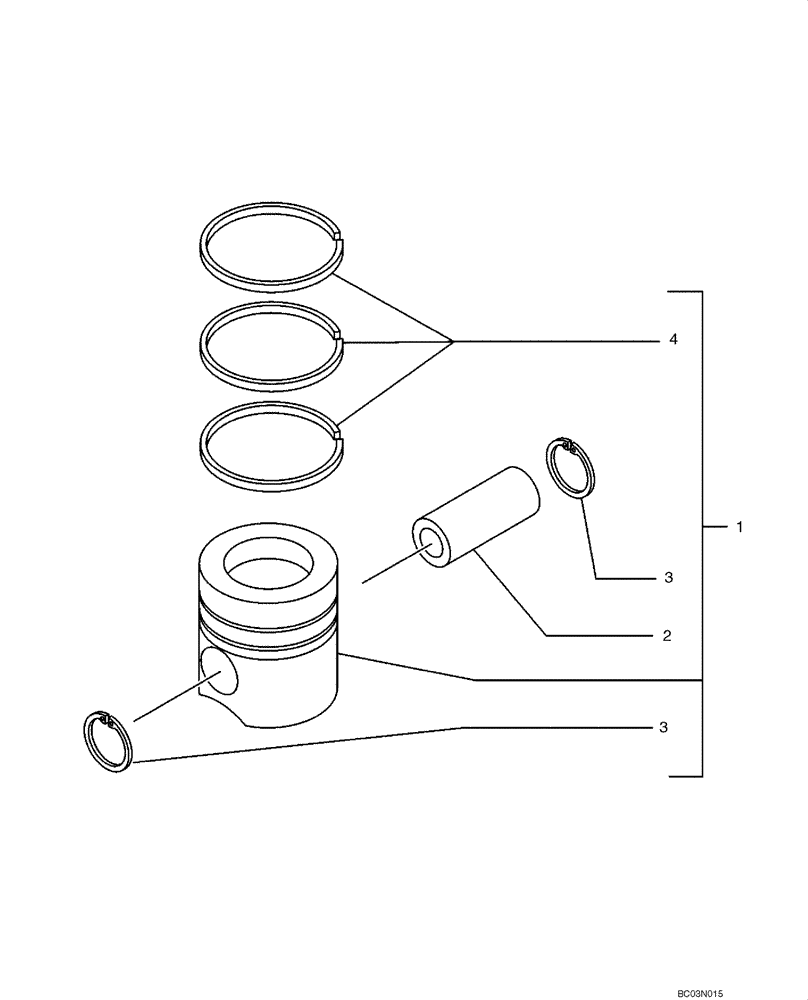

Схема запчастей Case 721E - (02-37) - PISTONS (02) - ENGINE
2
3
1
3
4

Артикул

Название

Примечание

Количество

87538292

SHORT ENGINE

Includes All Parts On Figures 02-20, 02-21, 02-32, 02-33, 02-36, 02-37

1шт.

87538292R

REMAN-SHORT ENGINE

721E Tier 3 (8/06-)

1шт.

87538292C

SHORT ENGINE

Return Number

1шт.

87538292ER

REMAN-SHORT ENGINE

721E 6 Cylinder, Tier 3, (8/07)

1шт.

87538292EPAC

CORE-EPA ENGINE

Return Number

1шт.

87317256

PISTON & RINGS KIT

Standard; Incl. Refs. 1 - 4

6шт.

87317257

PISTON & RINGS KIT

.4 mm OS; Incl. Refs. 1 - 4

6шт.

1

2855519

PISTON

PISTON; Standard

1шт.

1

2856988

KIT, ENGINE OVERHAUL, PISTON; .4 mm OS

1шт.

2

4892712

PISTON PIN,38mm OD x 82mm L

1шт.

3

2854030

SNAP RING,M40.8 OD

2шт.

8094845

PISTON RINGS KIT

Standard; Incl. Ref. 4 Top, Second, and Oil Rings

1шт.

87582180

PISTON RINGS KIT

.4 mm OS; Incl. Ref. 4 Top, Second, and Oil Rings

1шт.

4

2854603

PISTON RING

RING, Top Compression; Standard

1шт.

4

2856713

PISTON RING

RING, Top Compression; .4 mm OS

1шт.

4

2830158

PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk

Second Compression; Standard

1шт.

4

2830159

PISTON RING,95.4mm ID x 104.4mm OD x 2.39mm Thk

RING, PISTON, Second Compression; .4 mm OS

1шт.

4

2852037

SEAL,95.3mm ID x 104mm OD x 4mm Thk

Oil Control; Standard

1шт.

4

2853875

OIL SCRAPER RING +0.,95.3mm ID x 104mm OD

RING, PISTON, Oil Control; .4 mm OS

1шт.

Выбрано товаров: 19
