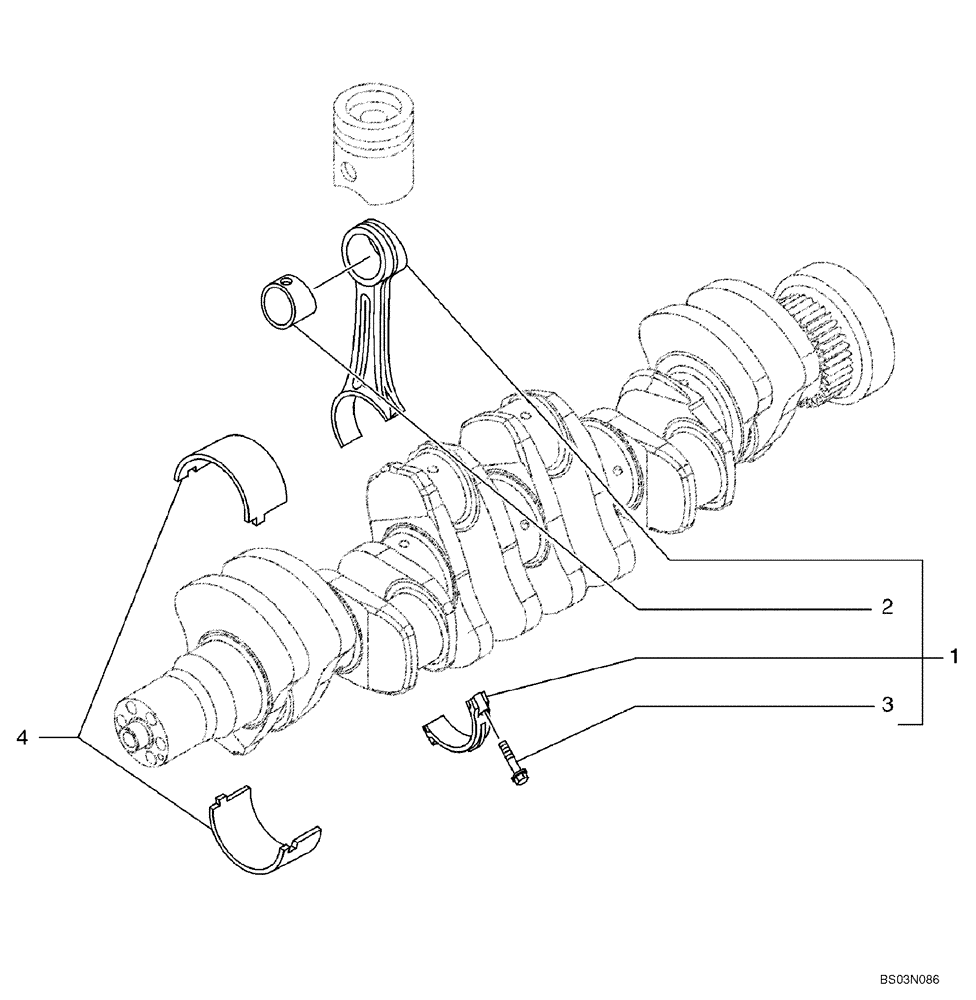

Запчасти Case 721E (02-36) - CONNECTING ROD (02) - ENGINE

87538292

SHORT ENGINE

Includes All Parts On Figures 02-20, 02-21, 02-32, 02-33, 02-36, 02-37

1шт.

87538292R

REMAN-SHORT ENGINE

721E Tier 3 (8/06-)

1шт.

87538292C

SHORT ENGINE

Return Number

1шт.

87538292ER

REMAN-SHORT ENGINE

721E 6 Cylinder, Tier 3, (8/07)

1шт.

87538292EPAC

CORE-EPA ENGINE

Return Number

1шт.

2831298

CONNECTING ROD

ASSY. Incl. Refs. 1 - 3

6шт.

2831298R

REMAN-CONNECTING ROD

721E Tier 3 ( 8/06 - )

6шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

CONNECTING ROD, Arm

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

8093882

BEARING SET

Incl. Ref. 4

1шт.

8094960

BEARING SET,(-0.250)

Incl. Ref. 4

1шт.

8094961

BEARING SET,(-0.500)

Incl. Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

BEARING, CRANKSHAFT

6шт.
