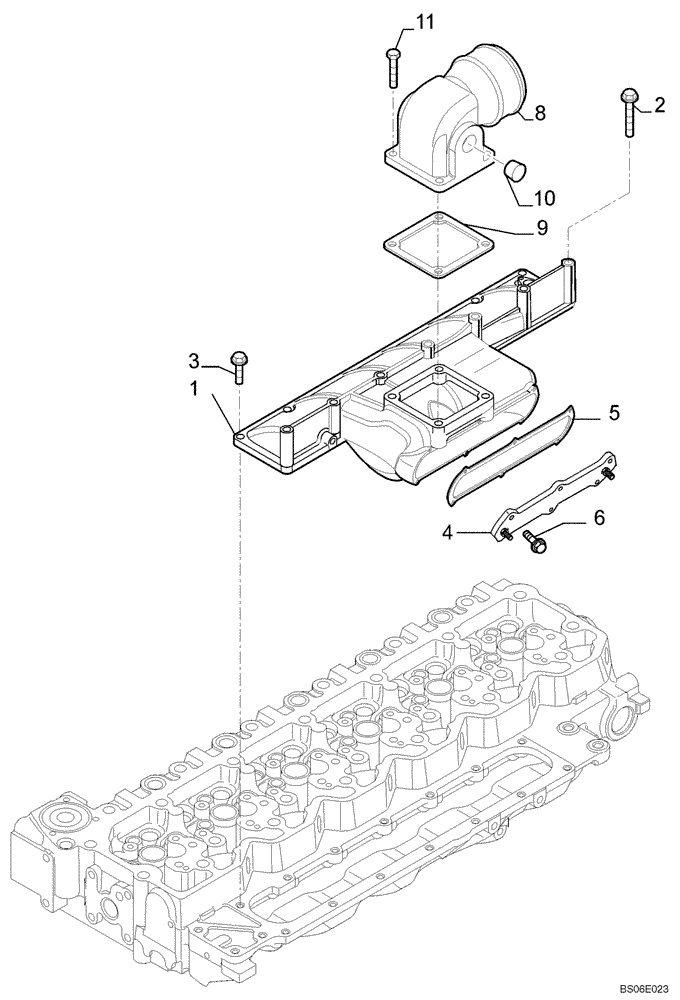

Запчасти Case 721E (02-30) - INTAKE MANIFOLD (02) - ENGINE

1

2854534

INLET MANIFOLD

1шт.

2

4895432

SCREW,M8 x 1.25 x 70mm

3шт.

3

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

7шт.

4

2854700

COVER

1шт.

5

2854701

GASKET,0.8mm Thk

1шт.

6

2854702

SCREW,Hex Flg, M6 x 20mm

6шт.

8

4895424

INLET MANIFOLD

1шт.

9

4899921

GASKET,1.2mm Thk

1шт.

10

4895079

PIPE PLUG,3/4"-14

In Alternative

2шт.

10

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

In Alternative

2шт.

11

2852212

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

In Alternative

4шт.

11

4895294

BOLT,Flng, M8 x 1.25 x 80mm, Cl 10.9

In Alternative

4шт.

12

2852814

STUD

Not Illustrated

1шт.

13

4897766

GROUND CABLE

Not Illustrated

1шт.

14

4896263

BOOT

Not Illustrated

1шт.
