Запчасти Case 721E (09-97) - DECALS - ENGLISH (09) - CHASSIS

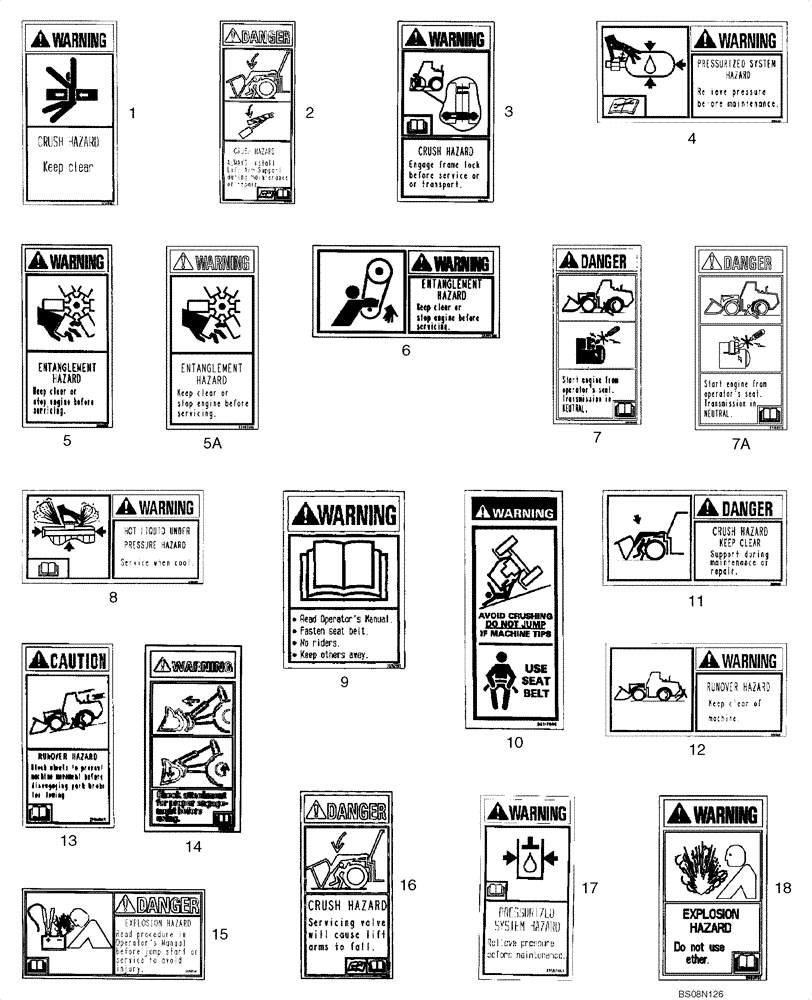

Схема запчастей Case 721E - (09-97) - DECALS - ENGLISH (09) - CHASSIS
7
15
1
11
7a
12
3
9
5
8
6
4
2
5a
14
17
10
13
16
18

Артикул

Название

Примечание

Количество

1

323694A1

DECAL

Warning; Crush Hazard

2шт.

2

407737A2

DECAL

Lift Arm Support

1шт.

3

329047A1

DECAL

Warning; Crush Hazard

1шт.

4

328904A1

DECAL

Warning; Pressurized System Hazard

2-3шт.

5

332512A1

DECAL

Warning; Fan; No Longer Available, Order 87488606 Decal, Ref. 5A

3шт.

5a

87488606

DECAL

Warning; Fan

3шт.

6

388112A1

DECAL

Warning; Belt Entanglement

1шт.

7

334456A1

DECAL

Danger; Starting In Gearp; No Longer Available, Order 87488616 Decal, Ref. 7A

1шт.

7a

87488616

DECAL

Danger; Starting In Gear

1шт.

8

329044A1

WARNING DECAL,168mm x 88mm H

Hot Liquid Hazard

1шт.

9

382622A1

DECAL,60mm x 90mm H

Warning; Read The Operator's Manual

1шт.

10

321-7030

WARNING DECAL

Do Not Jump

1шт.

11

328754A1

DANGER DECAL

Danger; Crush Hazard

1шт.

12

328752A1

DECAL

Warning; Runover Hazard

1шт.

13

329049A1

DECAL

Caution; Block Wheels

1шт.

14

364742A1

DECAL

Warning; Check Attachment

1шт.

15

412471A1

DECAL

Danger; Battery Explosion Hazard

2шт.

16

87453132

DECAL

Danger; Crush Hazard

2шт.

17

335889A1

DECAL

Warning; Pressurized System Hazard

2шт.

18

8603092

WARNING DECAL,55mm x 95mm H

Warning; Ether Explosion

3шт.

Выбрано товаров: 20
