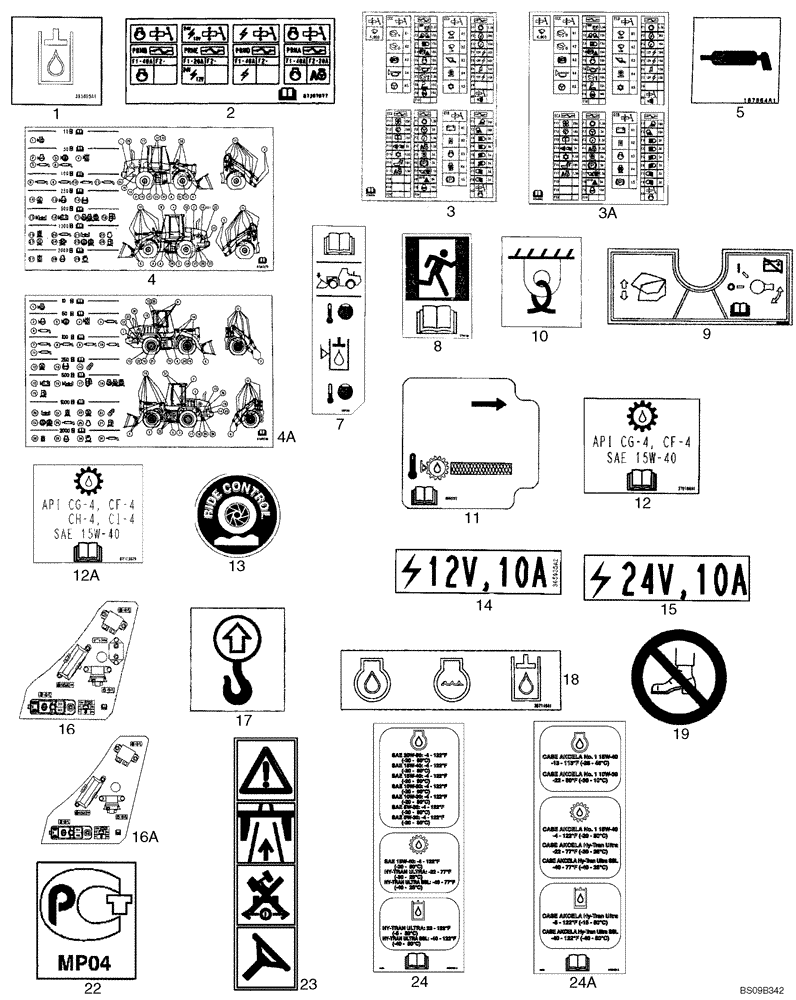

Запчасти Case 721E (09-94) - DECALS - COMMON TO MODEL (09) - CHASSIS

A59450

WARNING SIGN

Slow Moving Vehicle; Uses Following Mounting Hardware; Not Illustrated

1шт.

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

832-10406

NUT,M6 x 1, Cl 8

2шт.

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

1

395895A1

DECAL

Hydraulic Fluid

1шт.

2

87397077

DECAL

Fuse

1шт.

3

87397076

DECAL

Fuse Location; If Used

1шт.

3a

87647668

DECAL

Fuse Location; If Used

1шт.

4

87397079

DECAL

Maintenance Chart; If Used

1шт.

4a

87598750

DECAL

Maintenance Chart; If Used

1шт.

5

187864A1

DECAL

Lubrication

2шт.

7

386741A2

DECAL

Hydraulic Fluid Temperature Level

1шт.

8

329051A1

DECAL

Emergency Exit

1шт.

9

87524649

DECAL

Battery Disconnect

1шт.

10

139728A1

DECAL

Tie Down

4шт.

11

8602227

DECAL

Transmission Fluid Level

1шт.

12

379186A1

DECAL

15W-40; No Longer Available, Order 87713879 Decal, Ref. 12A

1шт.

12a

87713879

DECAL

15W-40

1шт.

13

304083A1

DECAL

Ride Control

2шт.

14

365935A2

DECAL

12 Volt

1шт.

15

364741A1

DECAL

24 Volt

1шт.

16

87397078

DECAL

Fuse And Relay; If Used

1шт.

16a

84125381

DECAL

DECAL, Fuse And Relay; If Used

1шт.

17

139729A1

DECAL

Lift

4шт.

18

387149A1

DECAL

Fluid Drains

1шт.

19

E134402

DECAL

No Step

1шт.

20

76085355

REFLECTOR

Amber; Not Illustrated

2шт.

21

D55216

PAD,2" x 9"

2 x 9 in; Not Illustrated

1шт.

22

87750555

DECAL

PCT

1шт.

23

84128349

DECAL

Steering Warning

1шт.

24

84157758

DECAL

Fluid Temperature; No Longer Available, Order 84181938 Decal, Ref. 24A

1шт.

24a

84181938

DECAL

DECAL, Fluid Temperature

1шт.
