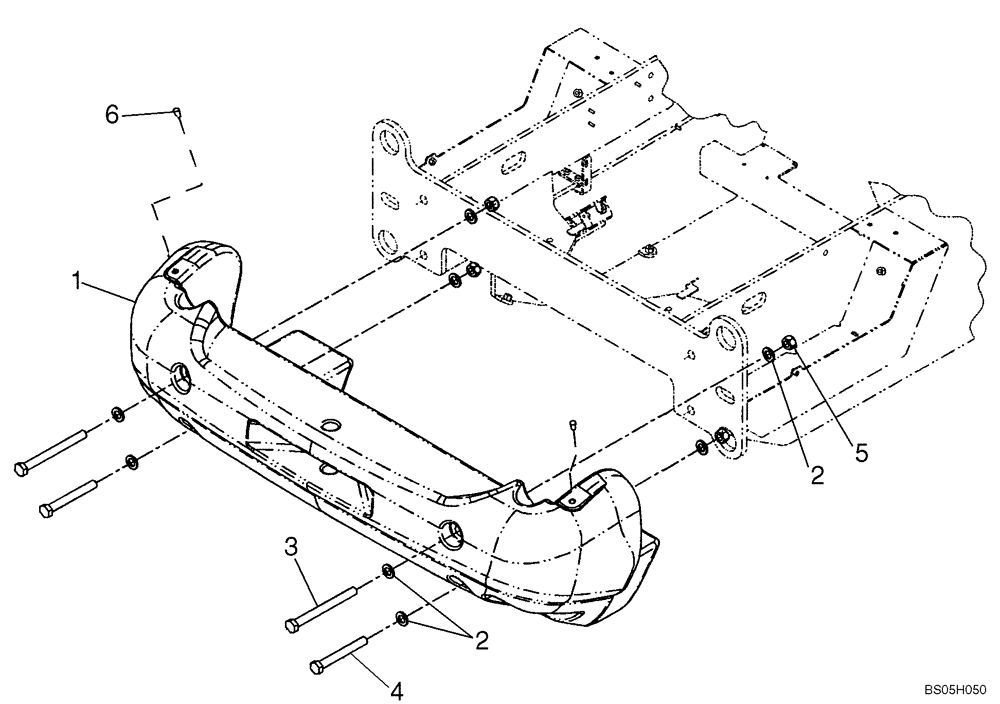

Запчасти Case 721E (09-89) - COUNTERWEIGHTS - 3450 POUND (09) - CHASSIS

REF

INSTRUCTION

STANDARD

1шт.

19-1041

LOCK PIN,7/16" x 2"

1/4 KLICK; Not Illustrated

1шт.

87516266

PIN,44.45mm OD

Hitch; Not Illustrated

1шт.

1

87447101

WEIGHT

1565kg ( 3450lb ); Rear

1шт.

2

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

8шт.

3

827-24250

BOLT,Hex, M24 x 3 x 250mm, Cl 10.9

2шт.

4

827-24190

BOLT,Hex, M24 x 3 x 190mm, Cl 10.9

2шт.

5

829-1424

NUT,M24, Cl 10

4шт.

6

87308200

PLASTIC PLUG

2шт.
