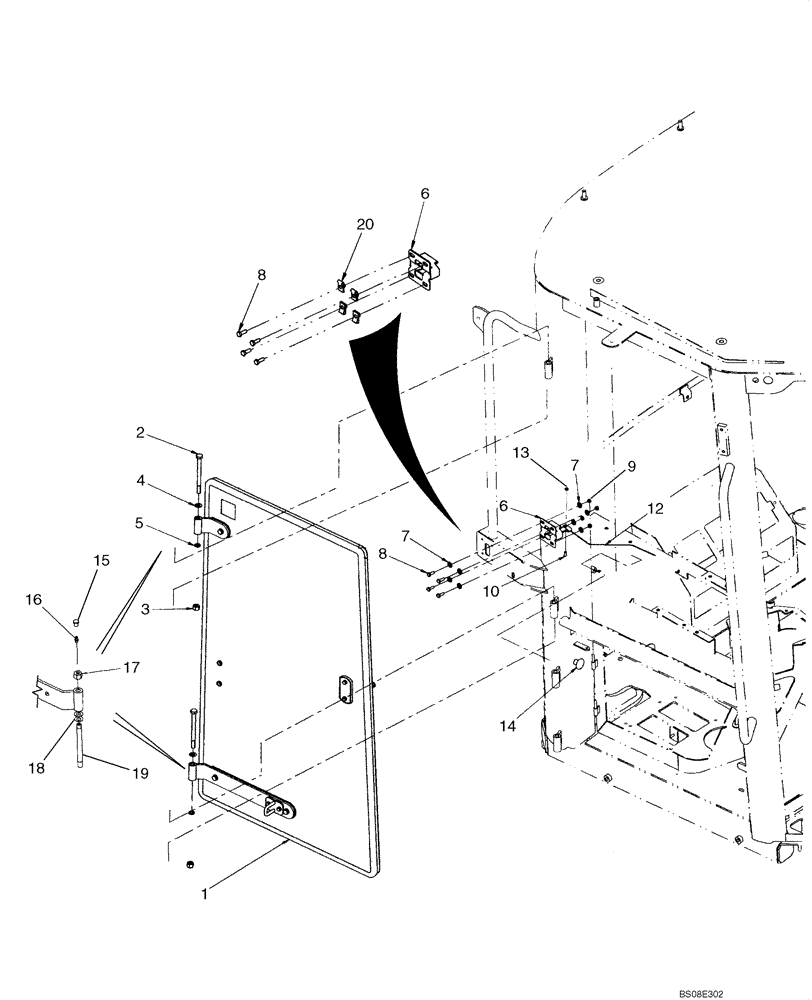

Запчасти Case 721E (09-60) - CAB - WINDOW, RIGHT-HAND-UPPER - MOUNTING (09) - CHASSIS

1

REF

INSTRUCTION

WINDOW ASSY. See Figure 09-61

1шт.

2

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

Thrust

2шт.

5

86547919

WASHER,10.3mm ID x 16.1mm OD x 2.1mm Thk

Brass

2шт.

6

4227178

LOCK

Window

1шт.

7

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

M9 x 16 x 1.6; If Used

8шт.

8

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

4шт.

9

825-1406

NUT,M6, Cl 8

If Used

4шт.

10

71485274

PIN,5mm OD x 13mm L

Window Latch

1шт.

11

732-1610

COTTER PIN,M1.6 x 10

Not Illustrated

1шт.

12

76303590

CABLE,330mm L

Window Lock

1шт.

13

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

1шт.

14

76303157

KNOB

M6

1шт.

15

87522522

CAP

Grease, If Used

2шт.

16

76043510

LUBE NIPPLE,M6 x 1 x 15 L

If used

2шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

If Used

2шт.

18

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

If Used

4шт.

19

3805129

PIN,10mm OD x 117mm L

If Used

2шт.

20

833-40306

SPRING NUT,M6, U

If Used

4шт.
