(09-38) - COVERS - DRIVE BELT (WITH AIR CONDITIONING)

Запчасти Case 721E (09-38) - COVERS - DRIVE BELT (WITH AIR CONDITIONING) (09) - CHASSIS

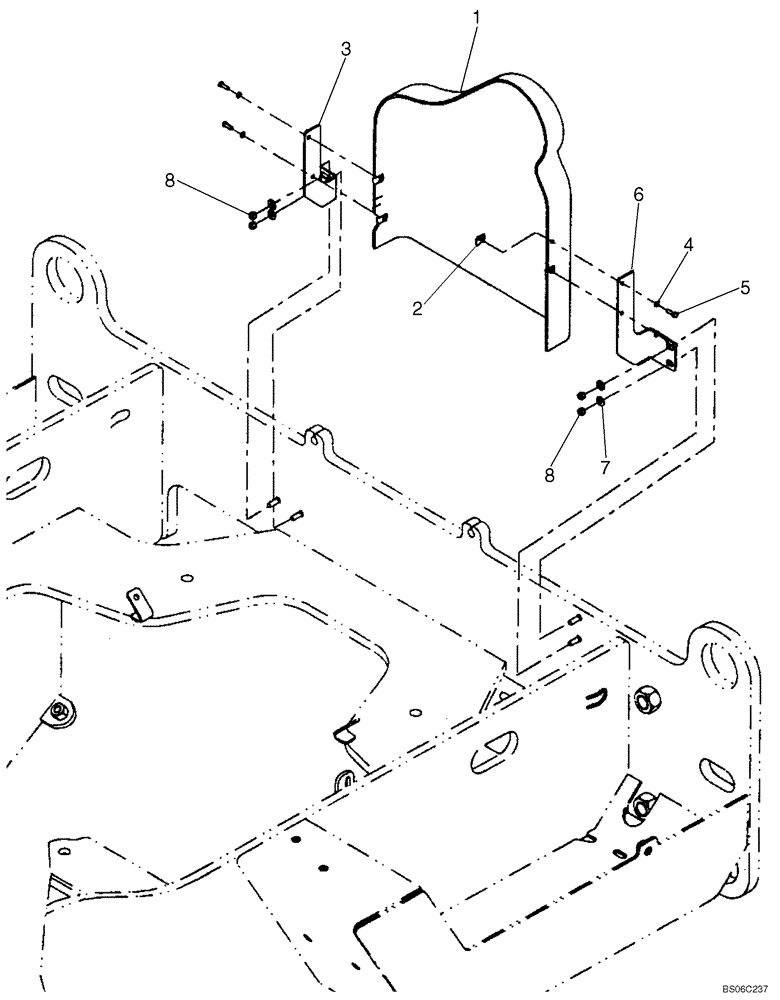

Схема запчастей Case 721E - (09-38) - COVERS - DRIVE BELT (WITH AIR CONDITIONING) (09) - CHASSIS
7
6
8
2
8
5
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

WITH AIR CONDITIONING

1шт.

1

8501022

GUARD

1шт.

2

833-40306

SPRING NUT,M6, U

4шт.

3

87528970

BRACKET

Engine Guard; Right

1шт.

4

892-11006

LOCK WASHER,M6

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

87528973

BRACKET

Engine Guard Mount; Left

1шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.
