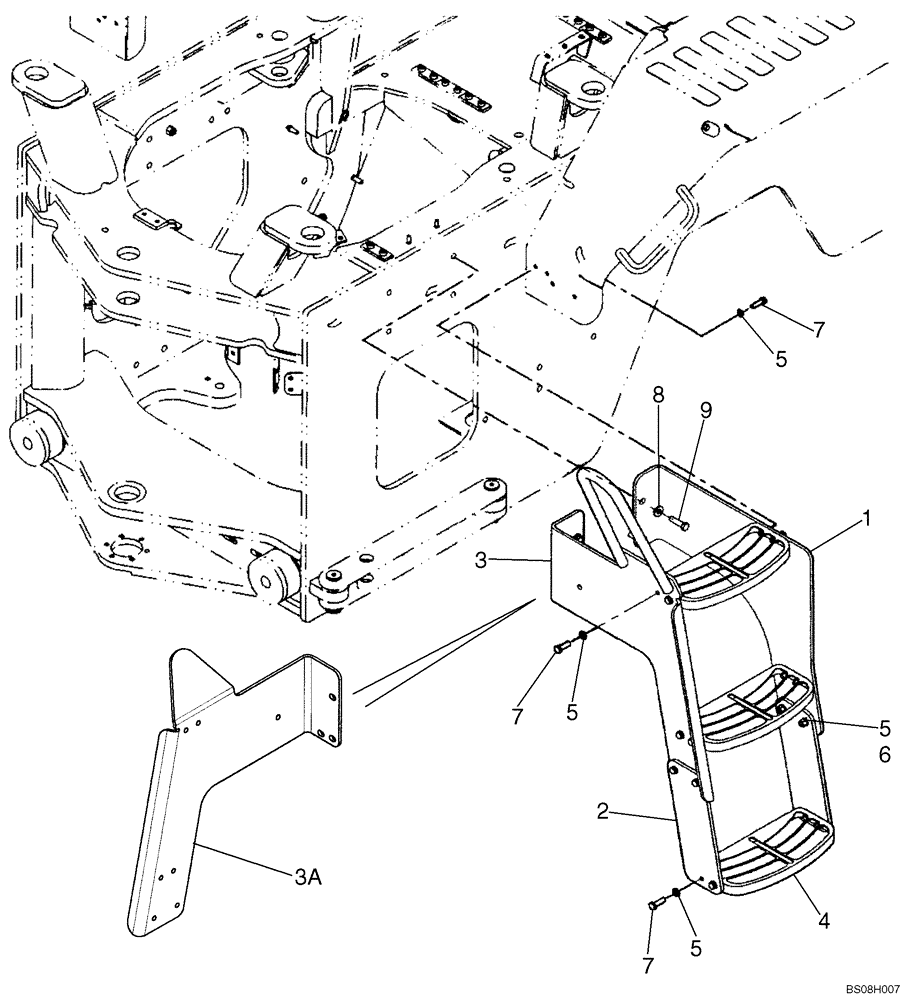

Запчасти Case 721E (09-36) - STEPS - LEFT (09) - CHASSIS

1

87316039

BRACKET

Step Support, RH Rear

1шт.

2

87434096

STRAP

Lower

2шт.

3

87526475

BRACKET

Step Support, LH Front, With Grab Handle; If Used

1шт.

3a

87757846

BRACKET

Step Support, LH Front, Without Grab Handle; If Used

1шт.

4

87434472

STEP

Stamped Steel; Tan

3шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

32шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

16шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

16шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.
