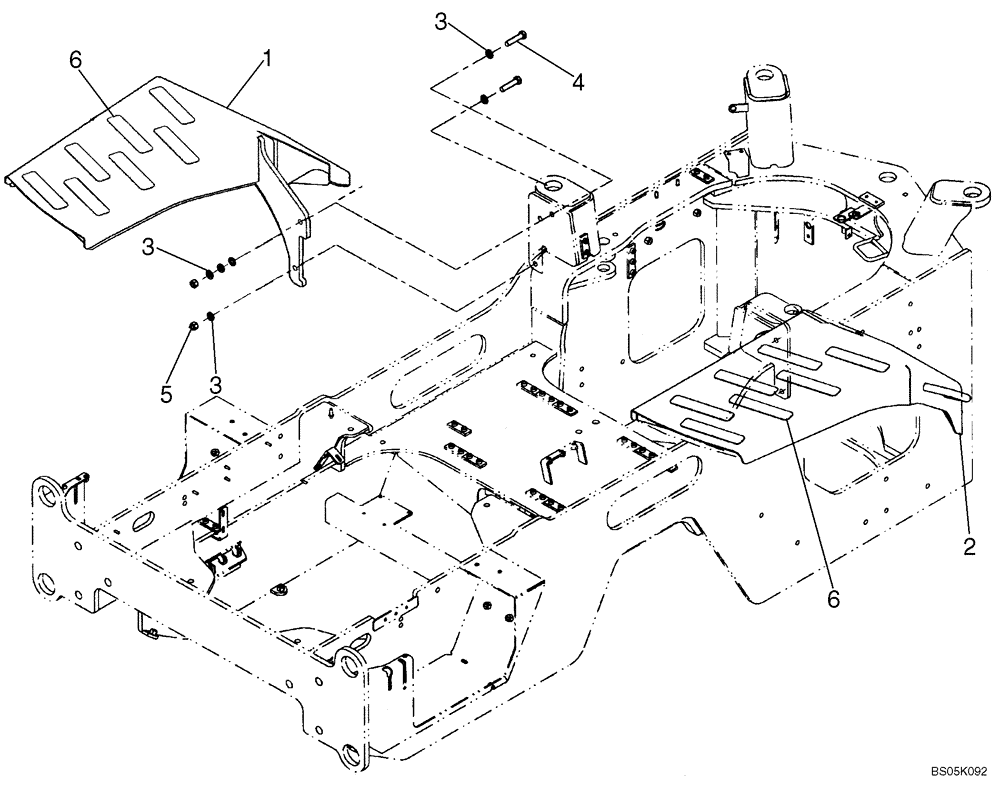

Запчасти Case 721E (09-32) - FENDERS, REAR - STANDARD (09) - CHASSIS

REF

INSTRUCTION

STANDARD REAR FENDERS AND SUPPORT BRACKET

1шт.

1

87391291

SUPPORT

Left Hand, Serial Range: -NAF208430

1шт.

1

84191106

SUPPORT

, Start Serial: NAF208430

1шт.

2

87393386

SUPPORT

Right Hand, Serial Range: -NAF208430

1шт.

2

84191105

SUPPORT

, Start Serial: NAF208430

1шт.

3

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

4

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

4шт.

5

829-1416

NUT,M16, Cl 10

4шт.

6

D55216

PAD,2" x 9"

2 x 9 in

14шт.
