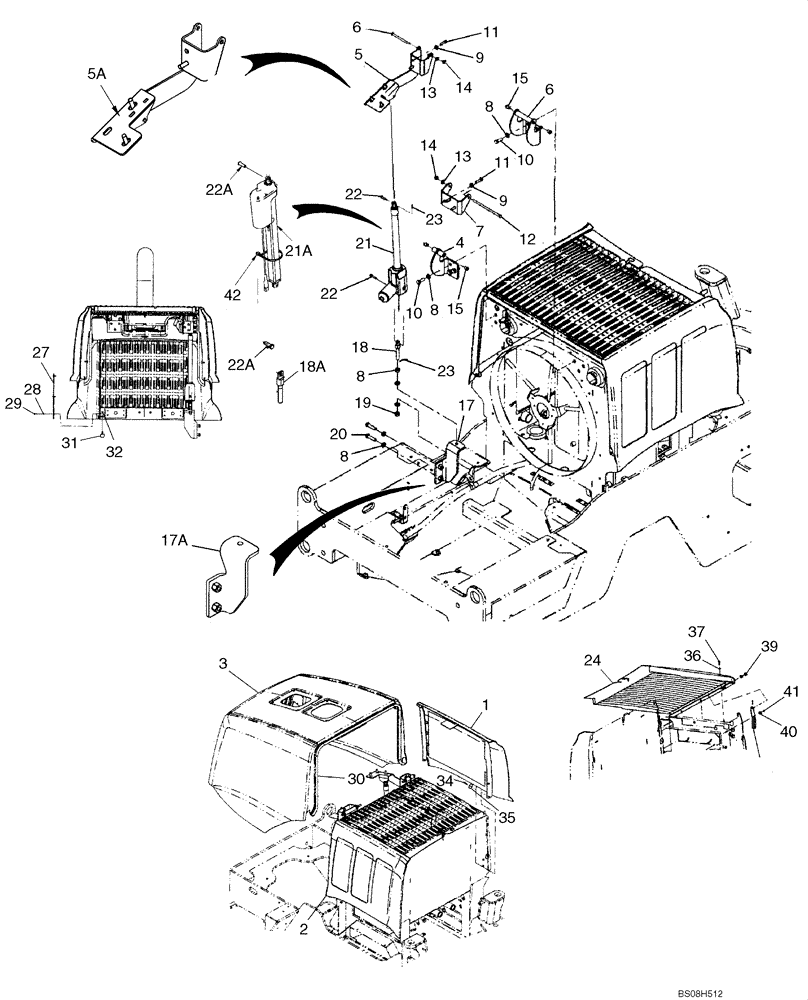

Запчасти Case 721E (09-26) - HOOD (09) - CHASSIS

1

87308668

PANEL

Left Hand; Standard Models

1шт.

1

84128669

ENGINE HOOD PANEL

PANEL, Left Hand; Commodity King Models

1шт.

2

87308682

PANEL

Right Hand; Standard Models, Serial Range: -1

1шт.

2

84128671

ENGINE HOOD PANEL

PANEL, Right Hand; Commodity King Models

1шт.

3

87432252

HOOD

Engine; Tan/Gray

1шт.

4

8605371

LATCH HOOK

Left

1шт.

5

8602717

HINGE

Hood, Left; Used With Jack 8602475

1шт.

5a

87625616

BRACKET

Hood, Left; Used With Jack 87398773

1шт.

6

8605372

HINGE

Hood Mount; Right

1шт.

7

8501151

HINGE

Hood; Right

1шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

10шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

10

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

8шт.

12

827-12220

BOLT,Hex, M12 x 1.75 x 220mm, Cl 10.9

1шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

15

382495A1

BUSHING

4шт.

16

827-12140

BOLT,Hex, M12 x 1.75 x 140mm, Cl 10.9

1шт.

17

8602409

BRACKET

Electric Jack Base; Used With Jack 8602475

1шт.

17a

87641237

BRACKET

Electric Jack Base; Used With Jack 87398773

1шт.

18

8501161

ROD

Jack Adjuster; Used With Jack 8602475

1шт.

18a

87531205

ROD

Jack Adjuster; Used With Jack 87398773

1шт.

19

829-1416

NUT,M16, Cl 10

2шт.

20

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

21

8602475

JACK

Hood Electric Screw; If Used

1шт.

21a

87398773

ACTUATOR

Hood Jack; If Used

1шт.

22

729-1040

CLEVIS PIN,10mm OD x 40mm L

Used With Jack 8602475

2шт.

22a

728-1240

CLEVIS PIN,M12 x 40

Used With Jack 87531205

2шт.

23

733-3220

COTTER PIN,M3.2 x 20

2шт.

24

87308388

SCREEN

Top

1шт.

27

444931A1

PLATE

2шт.

28

892-11006

LOCK WASHER,M6

6шт.

29

627-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd

6шт.

30

8605846

RUBBER SEAL,2385mm L

Hood

1шт.

31

N7673

BUMPER

2шт.

32

425-145

JAM NUT,Jam, 5/16"-18, G5

2шт.

34

87021830

HEX SOC SCREW,M6 x 27.5mm, Cl 12.9

If Used

4шт.

34

87632741

STEP BOLT,M8 x 16mm, Cl 12.9

Shoulder, M6 8X16MM, 12.9, If Used

6шт.

35

495-81144

WASHER,0.41" ID x 1.75" OD x 0.06" Thk

6шт.

36

892-11008

LOCK WASHER,8mm ID

3шт.

37

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.

38

8602476

PROP

1шт.

39

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

40

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

41

832-10406

NUT,M6 x 1, Cl 8

1шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP Used with Jack 87398773

1шт.
