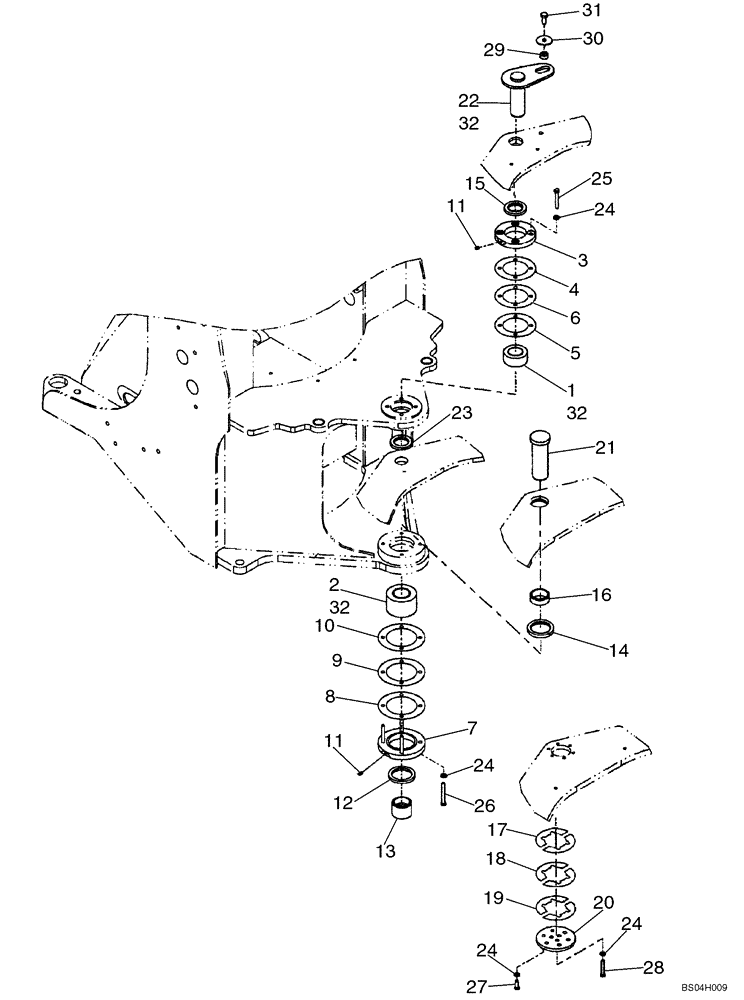

Запчасти Case 721E (09-23) - FRAME, REAR - PIVOT (09) - CHASSIS

1

391276A1

TAPERED BEARING,57.15mm ID x 96.84mm OD x 42.59mm W

Upper Pivot

1шт.

2

432765A1

TAPERED BEARING,63.5mm ID x 122.24mm OD x 76.61mm W

Lower Pivot

1шт.

3

391280A1

RETAINER

Upper Pivot

1шт.

4

L118987

SHIM,0.1mm Thk

(.004") Upper pivot

1шт.

5

L118986

SHIM,0.5mm Thk

(.020") Upper pivot

1шт.

6

L119202

SHIM,0.25mm Thk

(.010") Upper pivot

1шт.

7

432909A1

RETAINER

Lower Pivot

1шт.

8

L119203

SHIM,124mm ID x 190mm OD x 0.28mm Thk

0,25 mm (0,010 in); Lower Pivot

1шт.

9

L118989

SHIM,124mm ID x 190mm OD x 0.54mm Thk

(.020") Lower pivot

1шт.

10

L118990

SHIM,124mm ID x 190mm OD x 0.11mm Thk

(.004") Lower pivot

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

12

L126168

SEAL,79.38mm ID x 108.05mm OD x 11.89mm Thk

Lower; Lower Pivot

1шт.

13

87623438

SPACER,63.54mm ID x 79.4mm OD x 58.64mm L

Lower Pivot Bearing; Replaces 432767A1

1шт.

14

L118978

SEAL,79.38mm ID x 108.05mm OD x 12.7mm Thk

Lower; Articulation Plate

1шт.

15

391281A1

SEAL

Upper; Articulation Plate

1шт.

16

87623437

SPACER,63.55mm ID x 79.4mm OD x 29.5mm L

Upper; Lower Articulation Plate; Replaces 432766A1

1шт.

17

L118983

SHIM,90mm ID x 160mm OD x 0.11mm Thk

(.004") One half; Lower plate

1шт.

18

L118980

SHIM,90mm ID x 160mm OD x 0.28mm Thk

(.010") One half; Lower plate

1шт.

19

L118982

SHIM,90mm ID x 160mm OD x 0.54mm Thk

(.020") One half; Lower plate

1шт.

20

L128375

PLATE

Lower Pin

1шт.

21

433264A1

PIN,63.48mm OD x 198.75mm L

Lower Pivot

1шт.

22

8606124

PIN,57.14mm OD x 170mm L

Upper Pivot

1шт.

23

391278A1

SEAL

Lower; Lower Articulation Plate

1шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

17шт.

25

827-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

26

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

27

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

6шт.

28

827-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

3шт.

29

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Upper Pin

1шт.

30

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

1шт.

31

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

6шт.

32

331-329

GREASE

Wheel Bearing

1шт.
