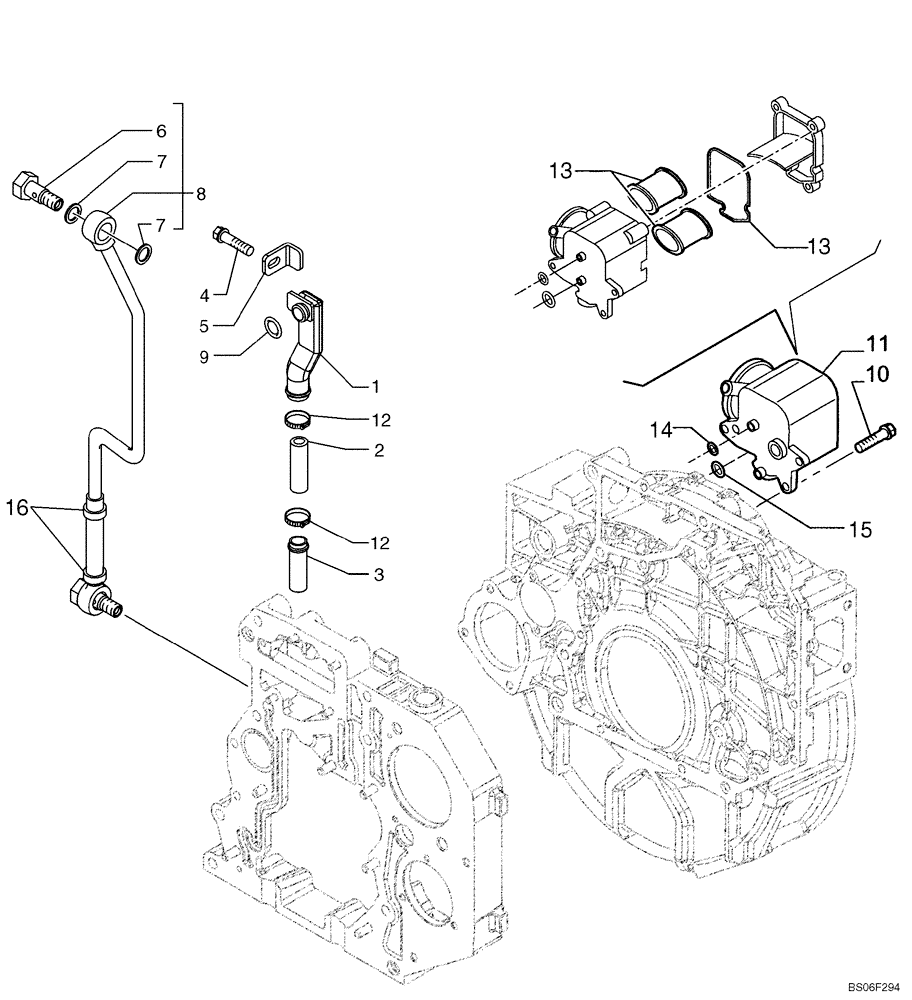

Запчасти Case 721E (02-15) - BREATHER - ENGINE (02) - ENGINE

1

4897534

TUBE

1шт.

2

4897546

RUBBER SLEEVE

IN ALTERNATIVE

1шт.

2

2854521

HOSE

In Alternative

1шт.

3

4897547

TUBE

1шт.

4

4897537

SCREW

M6X1X10

1шт.

5

4897536

BRACKET

1шт.

6

2852772

BANJO BOLT

M12X1.5X30

2шт.

7

4899926

SEALING WASHER,11.8mm ID x 18.0mm OD x 1.5mm Thk

4шт.

8

4899219

TUBE

- ASSY

1шт.

9

4898439

O-RING,20.29mm ID x 2.62mm Width

1шт.

10

4899092

SCREW,Hex Flg, M6 x 1 x 25

3шт.

11

4892871

BREATHER

- ASSY

1шт.

12

4893234

HOSE CLAMP

IN ALTERNATIVE

2шт.

12

2831016

HOSE CLAMP

IN ALTERNATIVE

2шт.

13

2992447

FILTER

1шт.

14

4898372

O-RING,13.11mm ID x 2.62mm Width

1шт.

15

2830304

O-RING

1шт.

16

4899242

CLAMP

2шт.
