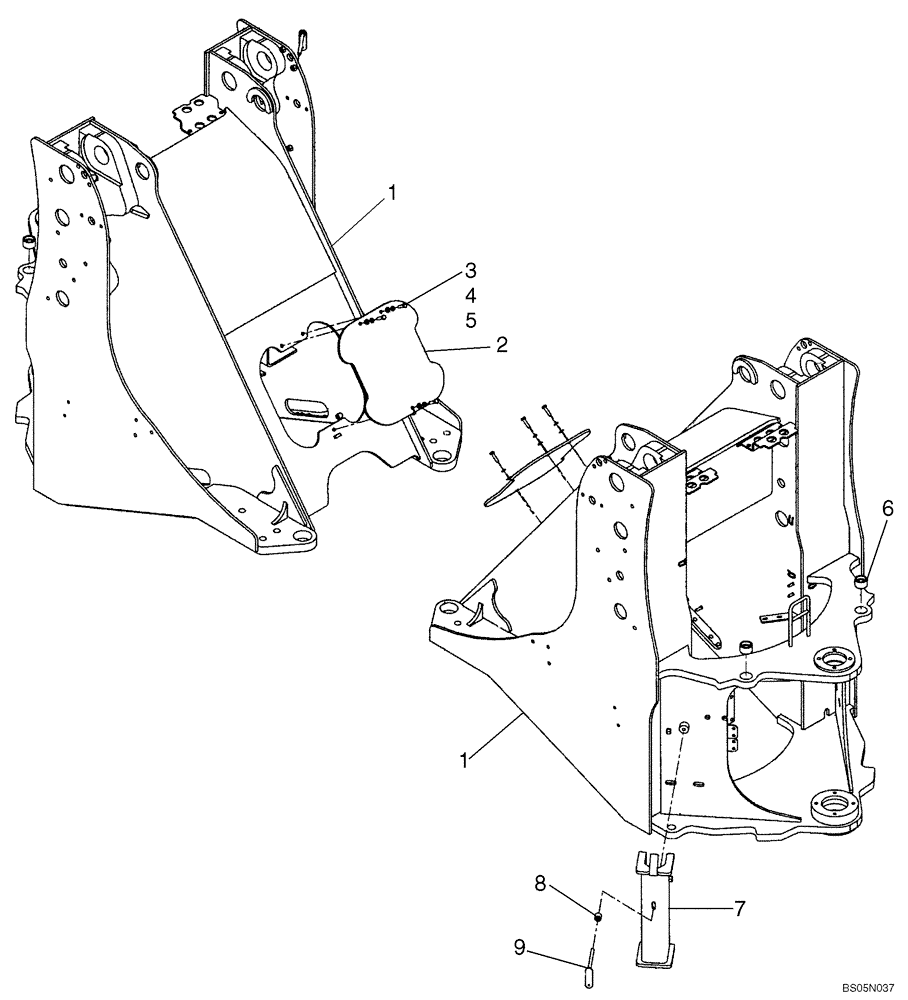

Запчасти Case 721E (09-21) - FRAME, FRONT- XT (09) - CHASSIS

REF

INSTRUCTION

XT FRONT CHASSIS

1шт.

1

87342901

CHASSIS

Front XT

1шт.

2

8605898

COVER

Valve

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

2шт.

7

87435589

CHANNEL

Linkage Support

1шт.

8

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

Bushing

1шт.

9

8500875

HANDLE

1шт.
