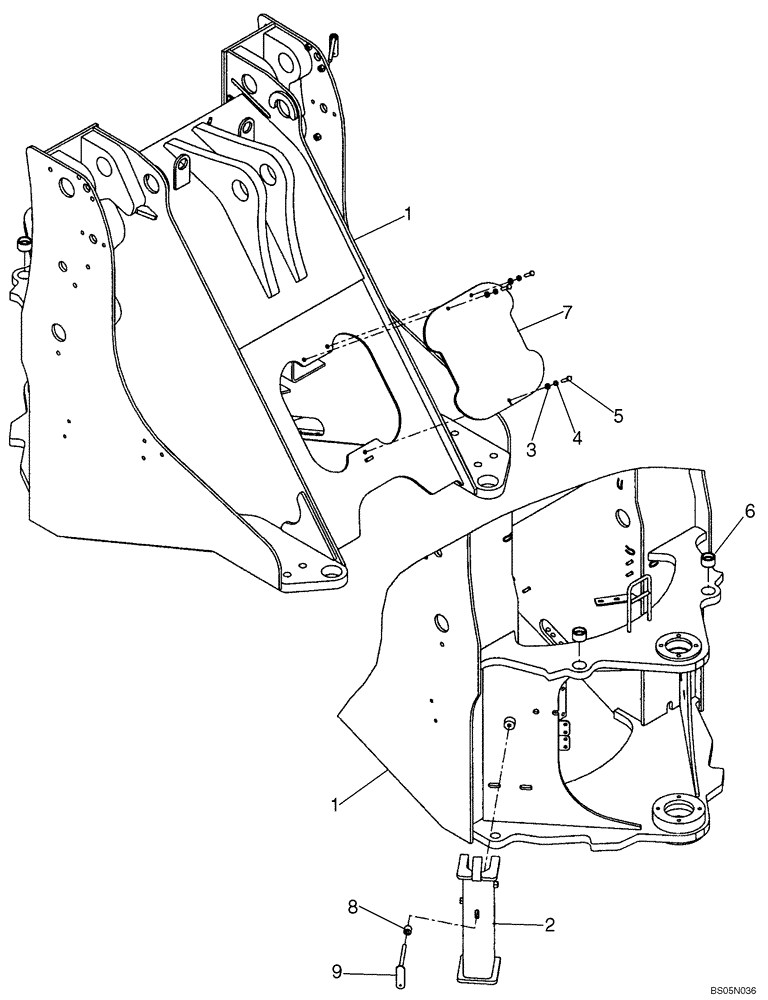

Запчасти Case 721E (09-20) - FRAME, FRONT- Z-BAR (09) - CHASSIS

REF

INSTRUCTION

FRONT Z-BAR CHASSIS

1шт.

1

87342650

CHASSIS

Z-Bar Front Chassis

1шт.

2

87435589

CHANNEL

Linkage Support; Red

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

4

892-11010

LOCK WASHER,M10

3шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

3шт.

6

8500173

BUSHING,40.22mm ID x 49.87mm OD x 32mm L

2шт.

7

8605898

COVER

Valve; Replaces 431168A1

1шт.

8

8500877

SPACER,12.8mm ID x 25.4mm OD x 23mm L

Bushing

1шт.

9

8500875

HANDLE

Linkage

1шт.
