Запчасти Case 721E (09-14) - COUPLER, HYDRAULIC - Z-BAR - ACS (09) - CHASSIS

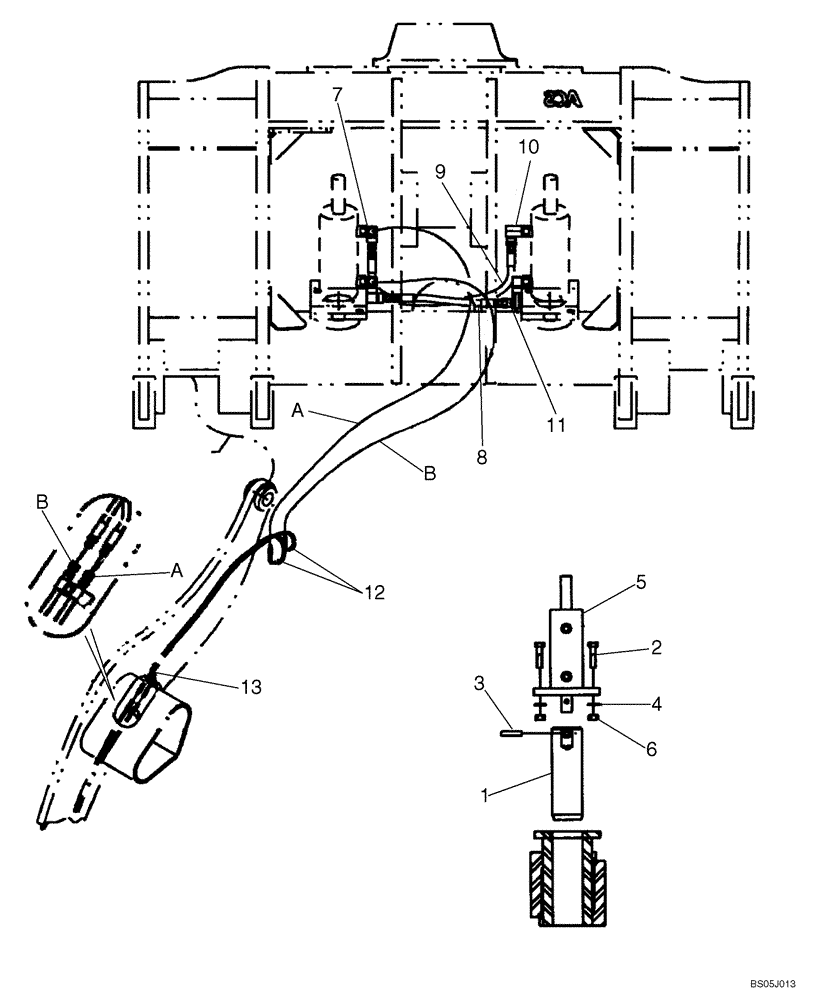

Схема запчастей Case 721E - (09-14) - COUPLER, HYDRAULIC - Z-BAR - ACS (09) - CHASSIS
4
10
2
11
7
6
12
8
9
1
13
3
5

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

8500679, COUPLER ACS Pro 2000 30HD

1шт.

REF

INSTRUCTION

8501327, PACKAGE; Manual ACS Pro Series 2000 30HD

1шт.

REF

INSTRUCTION

CYLINDER/PIN KIT; ACS; Z-BAR; Vendor Part Number; 65595535; Incl. 1 - 6

1шт.

1

REF

INSTRUCTION

PIN, LOCKING; ACS; Z-BAR; Vendor Part Number; 40600850; 2 x 6-9/16 IN

2шт.

2

REF

INSTRUCTION

HEX BOLT; ACS; Z-BAR; Vendor Part Number; 60660520; 1/2-13 X 2 in

4шт.

3

REF

INSTRUCTION

PIN,ROLL; ACS; Z-BAR; Vendor Part Number; 40336700; 3/8 X 1-7/8 in

2шт.

4

REF

INSTRUCTION

WASHER; ACS; Z-BAR; Vendor Part Number; 60680180; 1/2 Lock

4шт.

5

REF

INSTRUCTION

CYLINDER; ACS; Z-BAR; Vendor Part Number; 50600775

2шт.

6

REF

INSTRUCTION

NUT; ACS; Z-BAR; Vendor Part Number; 60481390; 1/2-13 NC

4шт.

7

REF

INSTRUCTION

FITTING, TEE; ACS; Z-BAR; Vendor Part Number; 52800539

2шт.

8

REF

INSTRUCTION

HOSE; ACS; Z-BAR; Vendor Part Number; 54001217

1шт.

9

REF

INSTRUCTION

HOSE; ACS; Z-BAR; Vendor Part Number; 54001106

1шт.

10

REF

INSTRUCTION

FITTING, 90DEG; ACS; Z-BAR; Vendor Part Number; 52800553

2шт.

11

REF

INSTRUCTION

FITTING, 90DEG; ACS; Z-BAR; Vendor Part Number; 52800593

2шт.

12

REF

INSTRUCTION

HOSE; ACS; Z-BAR; Vendor Part Number; 54001316

2шт.

REF

INSTRUCTION

RETAINER; ACS; Z-BAR; Vendor Part Number; 62640051

1шт.
