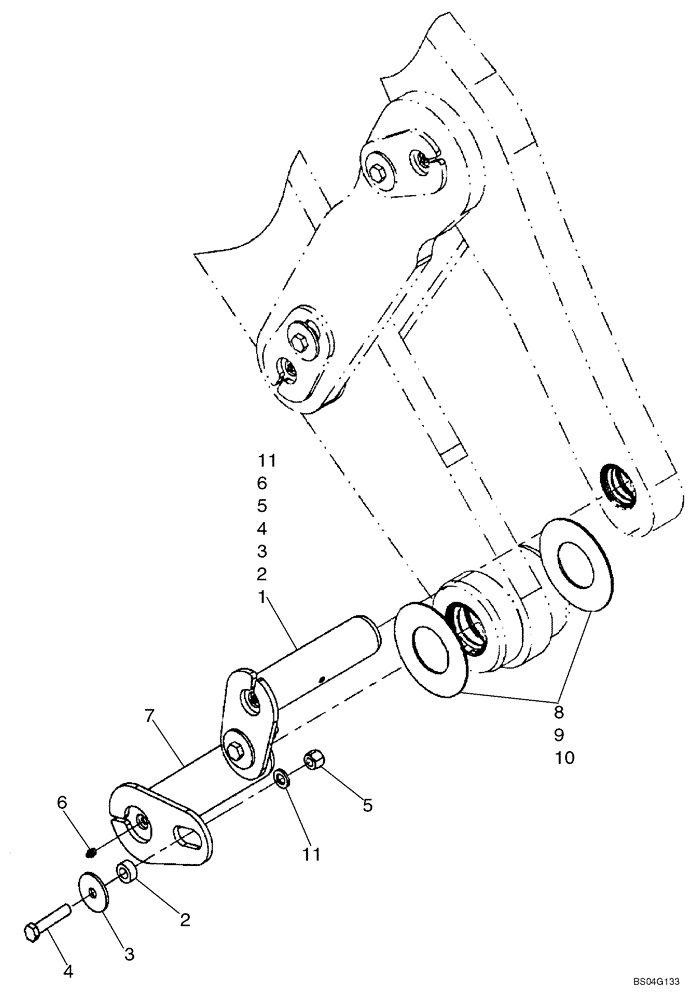

Запчасти Case 721E (09-11) - BUCKETS - ATTACHMENT (XT LOADER) (09) - CHASSIS

1

87437353

HEADED PIN

Lift Arm Pivot; CE Gray

2шт.

2

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Lift Arm

4шт.

3

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

4шт.

4

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

4шт.

5

832-10416

NUT,M16 x 2, Cl 8

4шт.

6

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

7

87437274

HEADED PIN

Lift Arm; CE Gray

2шт.

8

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

3.5 mm Thk

1шт.

9

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

Lift Arm

1шт.

10

441822A1

WASHER

1.6 mm Thk

1шт.

11

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.
