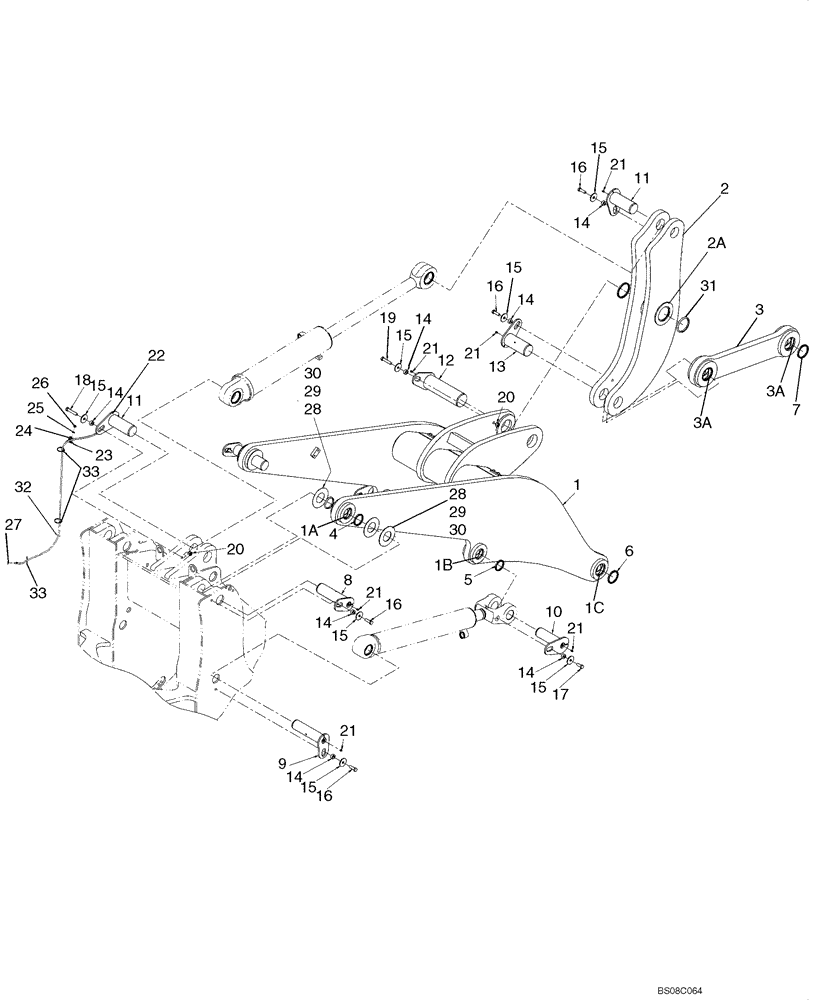

Запчасти Case 721E (09-07) - FRAME - LOADER LIFT (XR LOADER) (09) - CHASSIS

REF

INSTRUCTION

XR LOADER

1шт.

1

87475255

LIFT ARM

ARM, LIFT, XR, Incl. Refs. 1A - 1C, Serial Range: -NAF208216

1шт.

1

84284966

LIFT ARM

ARM, LIFT, XR, Incl. Refs. 1A - 1C, Start Serial: NAF208217

1шт.

1a

87613430

BUSHING,76.52mm ID x 89.99mm OD x 79mm L

Dump Link

2шт.

1b

87613444

BUSHING,70.16mm ID x 82.66mm OD x 78mm L

Lift Arm

2шт.

1c

87613433

BUSHING,82.86mm ID x 98.53mm OD x 79mm L

Lift Arm

2шт.

2

8602400

ARM

Bellcrank, Incl. Ref. 2A

1шт.

2a

87613436

BUSHING,101.91mm ID x 117.58mm OD x 84.8mm L

Bellcrank Pivot

2шт.

3

87575774

LINK

Dump, Incl. Ref. 3A

1шт.

3a

87613434

BUSHING,89.22mm ID x 104.88mm OD x 79mm L

Dump Link

2шт.

4

D95148

WIPER SEAL

76.2 mm ID

4шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

69.8 mm ID

4шт.

6

365523A1

WIPER SEAL

82.5 mm ID

4шт.

7

S92653

WIPER

88.9 mm ID

4шт.

8

435593A1

PIN

Lift Arm

2шт.

9

443136A1

PIN,69.85mm OD x 290.5mm L

Lift Arm

2шт.

10

437168A1

PIN

Lift Arm

2шт.

11

437295A1

PIN

Dump Link

2шт.

11

87305148

HEADED PIN

Dump Link; Heavy Duty, Chrome Plated

2шт.

12

8602405

PIN

Bellcrank

1шт.

13

442158A1

HEADED PIN

Dump Link

1шт.

13

87305151

HEADED PIN

Dump Link; Heavy duty, Chrome Plated

1шт.

14

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

10шт.

15

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

16

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

6шт.

17

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

18

827-16090

BOLT,Hex, M16 x 2 x 90mm, Cl 10.9

1шт.

19

827-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

1шт.

20

832-10416

NUT,M16 x 2, Cl 8

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

22

328082A1

ELBOW

90 deg.

1шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

24

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

25

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

27

F53473

LOCK NUT,1/8-27 NPSM

Hex

1шт.

28

375518A1

WASHER,77.6mm ID x 155mm OD x 3.5mm Thk

77.6 ID, 3.5 thk.

1шт.

29

L127108

WASHER,77.5mm ID x 152mm OD x 2.5mm Thk

77.6 ID, 2.5 thk.

1шт.

30

441822A1

WASHER

77.6 ID, 1.6 thk.

1шт.

31

S108245

WIPER SEAL

Rod, 101.6 mm ID

2шт.

32

318012A1

FLEXIBLE HOSE

Grease; 1785 mm (70 - 1/4 in)

1шт.

33

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.
