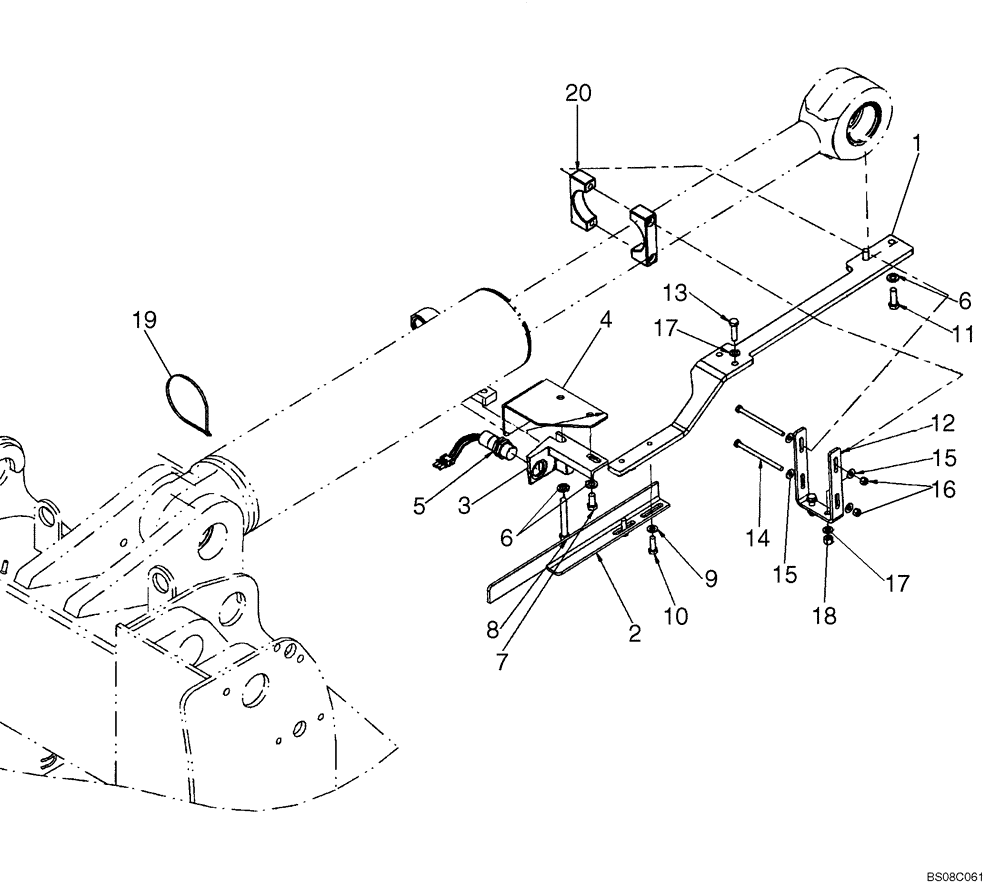

Запчасти Case 721E (09-03) - CONTROL - RETURN-TO-DIG (XR) (09) - CHASSIS

1

87713865

BRACKET

, Serial Range: Return-Dig

1шт.

2

443541A1

BRACKET

Target, Serial Range: Return-Dig

1шт.

3

L125983

SUPPORT

Proximity Switch

1шт.

4

87403966

COVER

Proximity Switch

1шт.

5

1546497C1

SWITCH

Proximity

1шт.

6

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

827-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 10.9

1шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

12

87713873

BRACKET

U-Hanger

1шт.

13

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

14

16045721

SCREW,Hex, M8 x 125mm, Cl 8.8

2шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

16

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

19

19-135

CABLE TIE

CABLE STRAP

7шт.

20

87713869

CLAMP

1шт.
