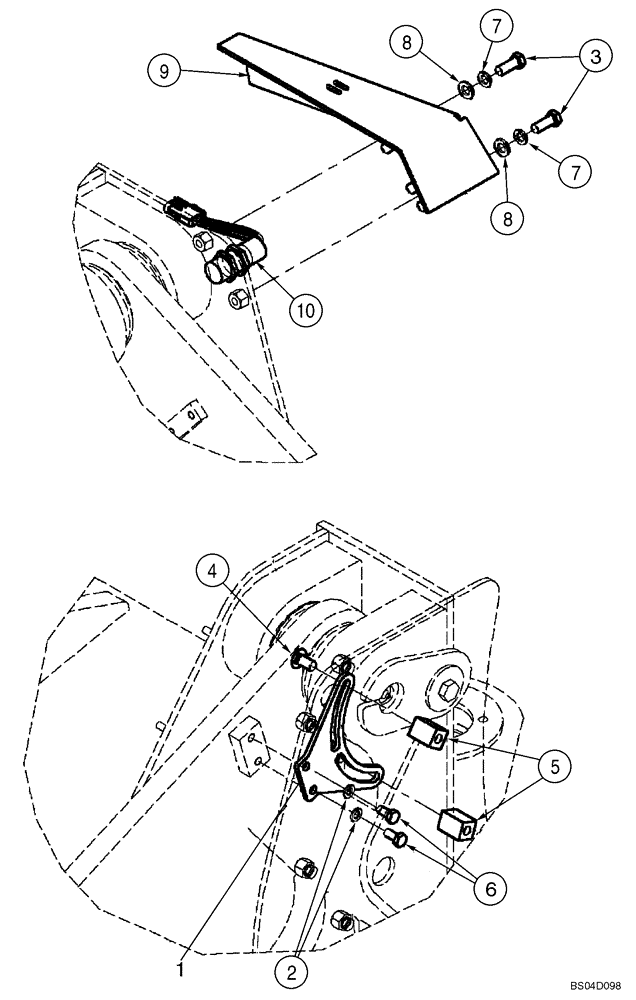

Запчасти Case 721E (09-02) - CONTROLS - BUCKET HEIGHT AND RETURN-TO-TRANSPORT ( Z BAR) (09) - CHASSIS

REF

INSTRUCTION

Z-BAR

1шт.

1

379149A2

MOUNTING PLATE

Mounting

1шт.

2

892-11010

LOCK WASHER,M10

2шт.

3

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

Z-Bar

2шт.

3

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

XT

2шт.

4

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

5

87437102

BLOCK

Proximity Switch

2шт.

6

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

Z-Bar

2шт.

7

892-11012

LOCK WASHER,M12

2шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

9

87430084

COVER

Proximity Switch

1шт.

10

1546498C1

SWITCH

Proximity

1шт.
