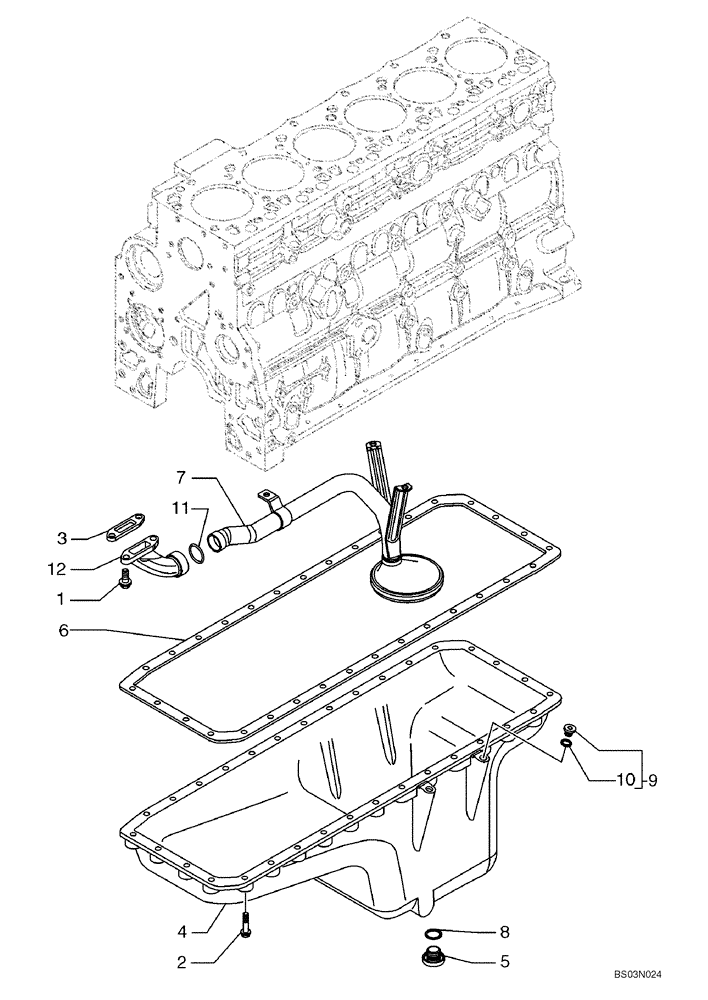

Запчасти Case 721E (02-13) - OIL PUMP, PAN (02) - ENGINE

1

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

2шт.

2

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

32шт.

3

4898301

GASKET,0.42mm Thk

1шт.

4

2852419

ENGINE OIL PAN

1шт.

5

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

6

2852420

OIL PAN GASKET SET

1шт.

7

2852770

STRAINER ELEMENT

Assy; Oil Suction

1шт.

8

2853728

O-RING,M23.47 ID x 2.62 Thk

1шт.

9

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy; Incl. Ref 10

1шт.

10

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

11

2852237

SEALING RING

26.64 ID x 2.62

1шт.

12

2852238

ELBOW

1шт.
