Запчасти Case 721E (88.035.01) - DIA KIT, FIELD LEVER CONVERTER 3-SPOOL 3-LEVER TO JOYSTICK + 1 LEVER (CASE) (08) - HYDRAULICS

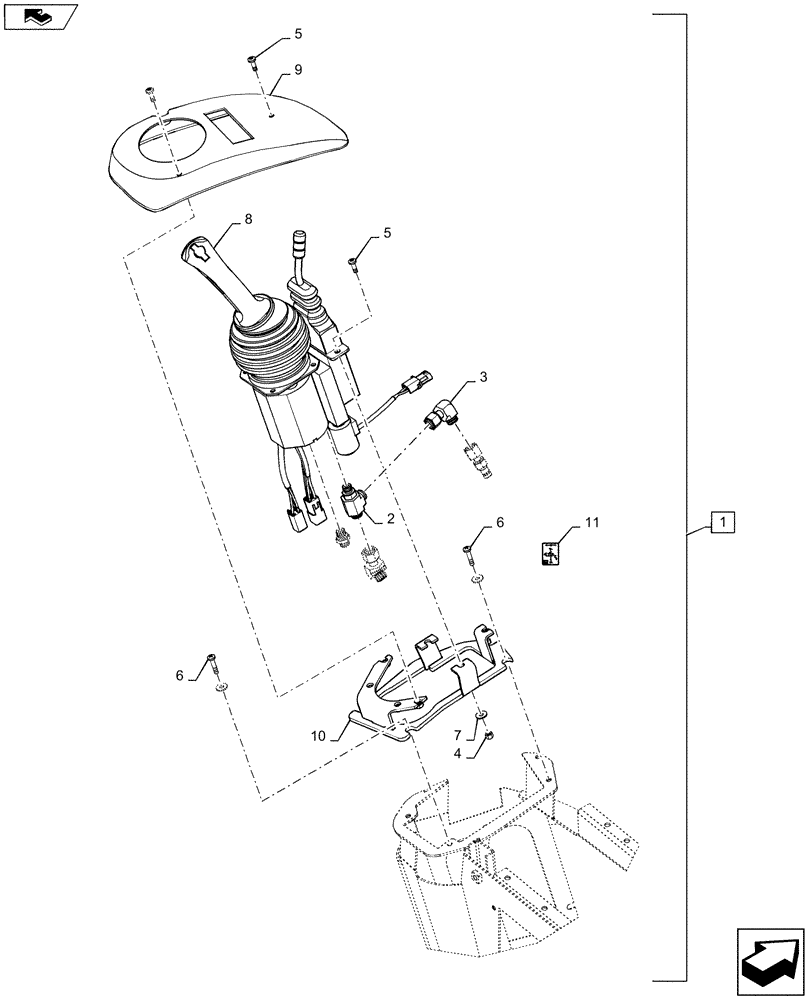

Схема запчастей Case 721E - (88.035.01) - DIA KIT, FIELD LEVER CONVERTER 3-SPOOL 3-LEVER TO JOYSTICK + 1 LEVER (CASE) (08) - HYDRAULICS
8
5
6
6
9
5
3
10
2
11
home
7
1
4

Артикул

Название

Примечание

Количество

1

87547227

CONSTRUCTION DIA

Kit, Field Lever Converter 3-Spool 3-Lever To Joystick + 1 Lever (Case), Incl 2 - 11

1шт.

2

700-406

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Adjust Run, Boss

1шт.

3

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Union

1шт.

4

832-10406

NUT,M6 x 1, Cl 8

2шт.

5

840-1620

SCREW,Pan, M6 x 20mm, Cl 4.8

7шт.

6

840-1630

SCREW,Pan, M6 x 30mm, Cl 4.8

Type

4шт.

7

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6шт.

8

87340017

JOYSTICK

Controller Assembly, 1 Lever

1шт.

9

87638911

BEZEL

Joystick 1 Lever Case

1шт.

10

87516506

ADAPTER

Bracket With Joystick Controller

1шт.

11

87536095

DECAL

Joystick And 1-Lever

1шт.

Выбрано товаров: 11
