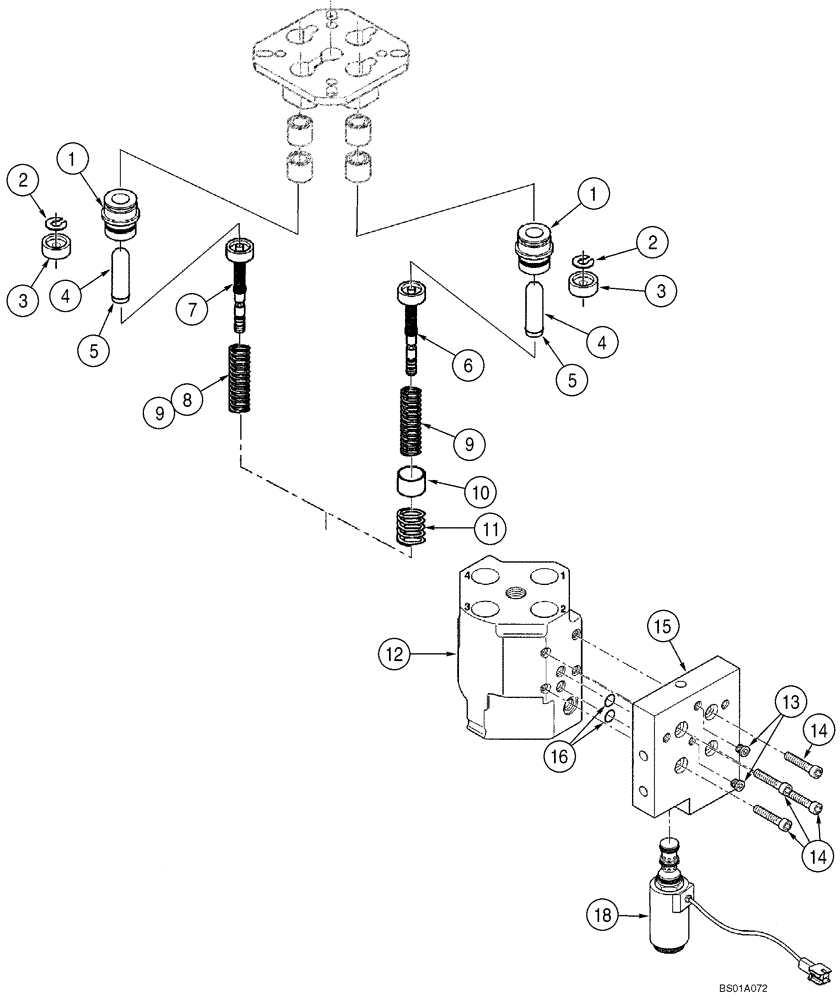

Запчасти Case 721E (08-49A) - VALVE ASSY - JOYSTICK CONTROL (08) - HYDRAULICS

87340016

JOYSTICK

Joystick; Incl. 1 - 18; Incl. Figure 08-49

1шт.

8604521

KIT

Plunger; Used In All Ports; Incl. 1 - 5

4шт.

1

NSS

NOT SOLD SEPARAT

Guide

2шт.

2

NSS

NOT SOLD SEPARAT

Washer

2шт.

3

NSS

NOT SOLD SEPARAT

Retainer

2шт.

4

NSS

NOT SOLD SEPARAT

Plunger

2шт.

5

NSS

NOT SOLD SEPARAT

Ring, Snap

2шт.

6

8604522

REGULATOR

Use In Port 1

1шт.

7

8604523

REGULATOR

Use In Ports 2, 3, 4

3шт.

8

87563048

SPRING

SSet of Two; Use In Ports 2, 4

1шт.

9

8604525

SPRING

Set Of Two; Use In Ports 1, 3

1шт.

87432563

SEAL KIT

Springs; Prefeeling; For Ports 1, 3; Use With 8603083 Control Valve; Not Illustrated

1шт.

10

NSS

NOT SOLD SEPARAT

Socket

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Housing

1шт.

13

8604550

REPAIR KIT

Plug; Set Of Two; If Used

1шт.

8604540

REPAIR KIT

Flange; Incl. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

M6 x 25, Screw

4шт.

15

NSS

NOT SOLD SEPARAT

Flange

1шт.

16

NSS

NOT SOLD SEPARAT

1,5 x 11, O-Ring

2шт.

17

8604541

SEAL KIT,11mm ID x 1.5mm Width

O-Ring; Set Of Two; Not Illustrated

1шт.

18

8604542

SOLENOID VALVE,Joystick Control, 24v

24V; Solenoid, Components Not Serviced

1шт.
