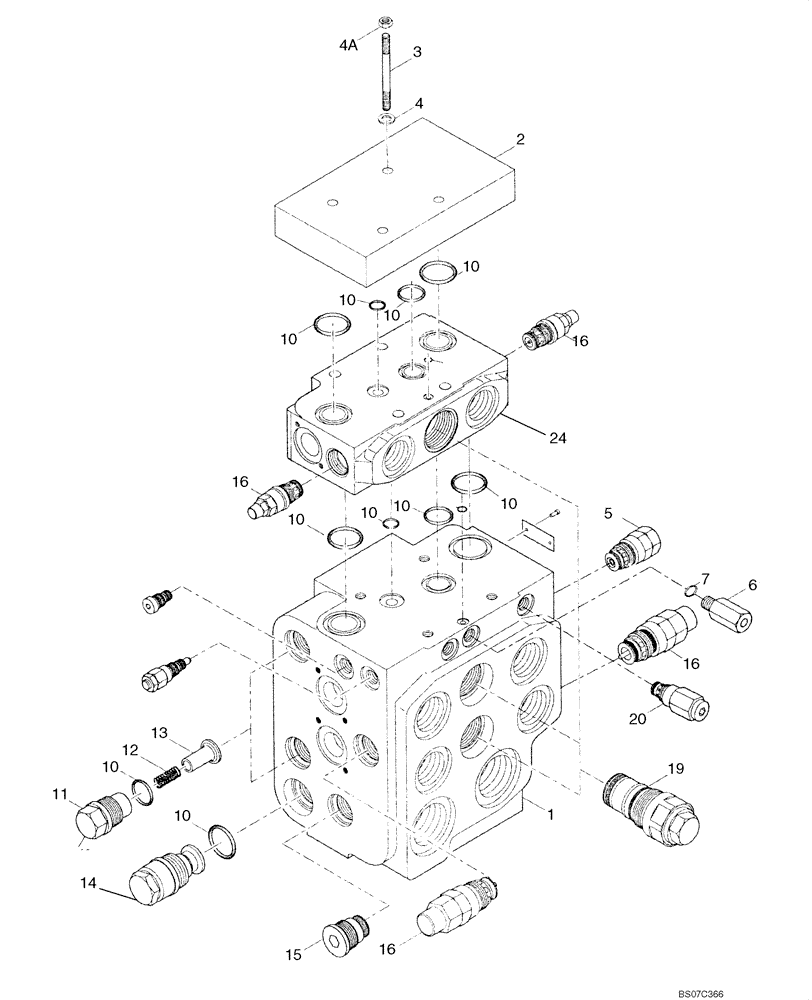

Запчасти Case 721E (08-45B) - VALVE ASSY - LOADER CONTROL, FOUR SPOOL (XT LOADER) - IF USED (08) - HYDRAULICS

87592836

HYDRAULIC VALVE

Four Spool; Incl. 1 - 25; Also Includes Spool Assemblies On Figure 08-45C; Replaces 87539267; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

87613466

PLATE

1шт.

3

8602932

STUD

M10 x 180; If Used

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

4a

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

5

87613468

HYDRAULIC VALVE

Anti-Cavitation for Valve 725

1шт.

5

48043556

VALVE

Anti-Cavitation for Valve 927

1шт.

5a

87613467

SEAL KIT

Anti-Cavitation for Valve 725

1шт.

5a

48043557

SEAL KIT

Anti-Cavitation for Valve 927

1шт.

6

8602899

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

7

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

15,60 x 1,78

1шт.

8

8602925

VALVE PRESSURE RELIE

Incl. 8A

1шт.

8a

8602926

SEAL KIT

Not Illustrated

1шт.

9

87613469

HYDRAULIC VALVE

Flow Limiting; Incl. 9A

1шт.

9a

8602916

SEAL KIT

Not Illustrated

1шт.

10

8602927

SEAL KIT

Control Block

1шт.

11

8602919

SCREW,Lock, M28 x 1 x 49mm

Locking; M28 x 1 x 49

2шт.

12

8602921

SPRING

Compression

2шт.

13

8602920

CONE

2шт.

14

8602912

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

15

8602902

LOCK SCREW

Incl. 15A

1шт.

15a

8602903

SEAL KIT

Not Illustrated

1шт.

16

8602906

HYDRAULIC VALVE

Incl. 16A

6шт.

16a

8602907

SEAL KIT

Not Illustrated

1шт.

17

8602893

SCREW,M33 x 2mm

M33 x 2; Locking

1шт.

19

8602900

PILOT VALVE

Incl. 19A

4шт.

19a

8602901

SEAL KIT

Not Illustrated

1шт.

20

8602913

HYDRAULIC VALVE

Incl. 20A

1шт.

20a

8602914

SEAL KIT

Not Illustrated

1шт.

24

NSS

NOT SOLD SEPARAT

M6 Control Block

2шт.
