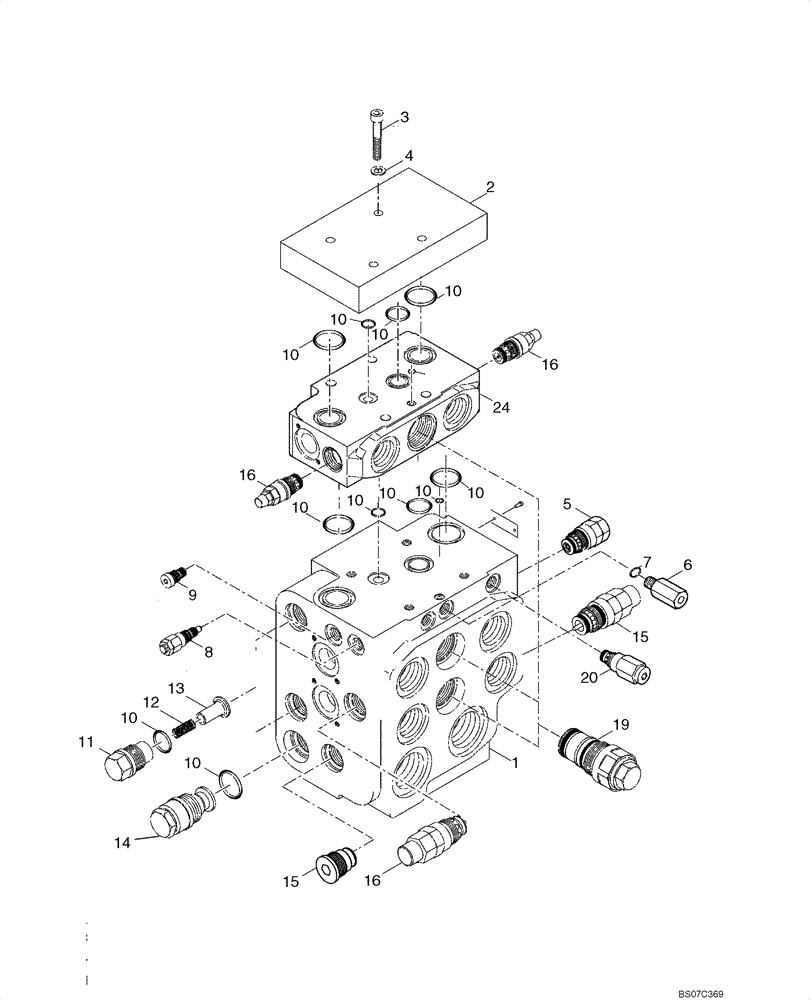

Запчасти Case 721E (08-44B) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (XT) - IF USED (08) - HYDRAULICS

87592835

HYDRAULIC VALVE

Three Spool; Incl. 1-25; Includes Spool Assembly On Figure 08-44C; Replaces 87539266; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

87613466

PLATE

1шт.

3

8602928

HEX SOC SCREW,M10 x 110mm, Cl 10.9

Hex Socket; M10 x 110; 10.9

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

87613468

HYDRAULIC VALVE

Anti-Cavitation for Valve 725

1шт.

5

48043556

VALVE

Anti-Cavitation for Valve 927

1шт.

5a

87613467

SEAL KIT

Anti-Cavitation for Valve 725

1шт.

5a

48043557

SEAL KIT

Anti-Cavitation for Valve 927

1шт.

6

8602899

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

7

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

15,60 x 1,78

1шт.

8

8602925

VALVE PRESSURE RELIE

Includes (3) O-Rings, (4) Thrust Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604941 Seal Kit, Ref 8A; Incl. 8A

1шт.

8a

8602926

SEAL KIT

Not Illustrated

1шт.

9

87613469

HYDRAULIC VALVE

Flow Limiting; Incl. 9A

1шт.

9a

8602916

SEAL KIT

Not Illustrated

1шт.

10

8602927

SEAL KIT

Control Block

1шт.

11

8602919

SCREW,Lock, M28 x 1 x 49mm

Locking; M28 x 1 x 49

2шт.

12

8602921

SPRING

Compression

2шт.

13

8602920

CONE

2шт.

14

8602912

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

15

8602902

LOCK SCREW

Incl. 15A

1шт.

15a

8602903

SEAL KIT

Not Illustrated

1шт.

16

8602906

HYDRAULIC VALVE

Combined Relief and Anti-Cavitation; Incl. 16A

4шт.

16a

8602907

SEAL KIT

Not Illustrated

1шт.

17

8602893

SCREW,M33 x 2mm

M33 x 2; Locking

2шт.

19

8602900

PILOT VALVE

Pilot Relief and Anti-Cavitation; Incl. 19A

3шт.

19a

8602901

SEAL KIT

Not Illustrated

1шт.

20

8602913

HYDRAULIC VALVE

Flow Limiting; Incl. 20A

1шт.

20a

8602914

SEAL KIT

Not Illustrated

1шт.

24

NSS

NOT SOLD SEPARAT

BLOCK, M6, Spool

1шт.
