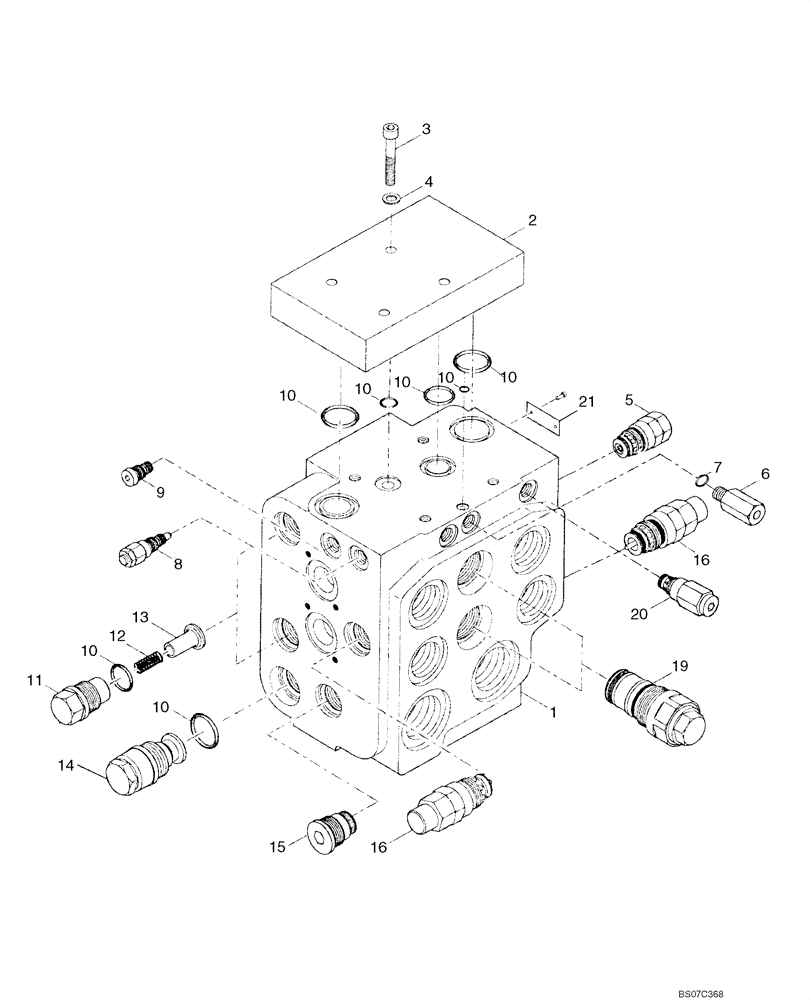

Запчасти Case 721E (08-43B) - VALVE ASSY - LOADER CONTROL, TWO SPOOL (XT) - IF USED (08) - HYDRAULICS

87592834

HYDRAULIC VALVE

Two Spool; Incl. 1 - 23A; Includes Spool Assembly On Figure 08-43C; Replaces 87539265; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

87613466

PLATE

PLATE, CAP

1шт.

3

962-10035

HEX SOC SCREW,M10 x 35mm, Cl 10.9

M10 x 35; 10.9

4шт.

3a

864-10055

HEX SOC SCREW,M10 x 55mm, Cl 8.8

Not Illustrated

4шт.

4

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

5

87613468

HYDRAULIC VALVE

Anti-Cavitation for Valve 725

1шт.

5

48043556

VALVE

Anti-Cavitation for Valve 927

1шт.

5a

87613467

SEAL KIT

Anti-Cavitation for Valve 725

1шт.

5a

48043557

SEAL KIT

Anti-Cavitation for Valve 927

1шт.

6

8602899

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

7

87311765

O-RING,1.78mm Thk x 15.6mm ID, 80 Duro

15,60 x 1,78

1шт.

8

8602925

VALVE PRESSURE RELIE

Incl. 8A

1шт.

8a

8602926

SEAL KIT

Not Illustrated

1шт.

9

87613469

HYDRAULIC VALVE

Incl. 9A

1шт.

9a

8602916

SEAL KIT

Not Illustrated

1шт.

10

8602927

SEAL KIT

1шт.

11

8602919

SCREW,Lock, M28 x 1 x 49mm

Locking; M28 x 1 x 49

1шт.

12

8602921

SPRING

Compression

1шт.

13

8602920

CONE

1шт.

14

8602912

HYDRAULIC VALVE

Component Parts Not Serviced Separately

1шт.

15

8602902

LOCK SCREW

Incl. 15A

1шт.

15a

8602903

SEAL KIT

Not Illustrated

1шт.

16

8602906

HYDRAULIC VALVE

Incl. 16A

2шт.

16a

8602907

SEAL KIT

Not Illustrated

1шт.

17

8602893

SCREW,M33 x 2mm

M33 x 2; Locking

1шт.

19

8602900

PILOT VALVE

Incl. 19A

2шт.

19a

8602901

SEAL KIT

Not Illustrated

1шт.

20

8602913

HYDRAULIC VALVE

Incl. 20A

1шт.

20a

8602914

SEAL KIT

Not Illustrated

1шт.
