(08-43A) - VALVE SECTION - BUCKET/BOOM SPOOLS (TWO SPOOL VALVE) (Z-BAR)

Запчасти Case 721E (08-43A) - VALVE SECTION - BUCKET/BOOM SPOOLS (TWO SPOOL VALVE) (Z-BAR) (08) - HYDRAULICS

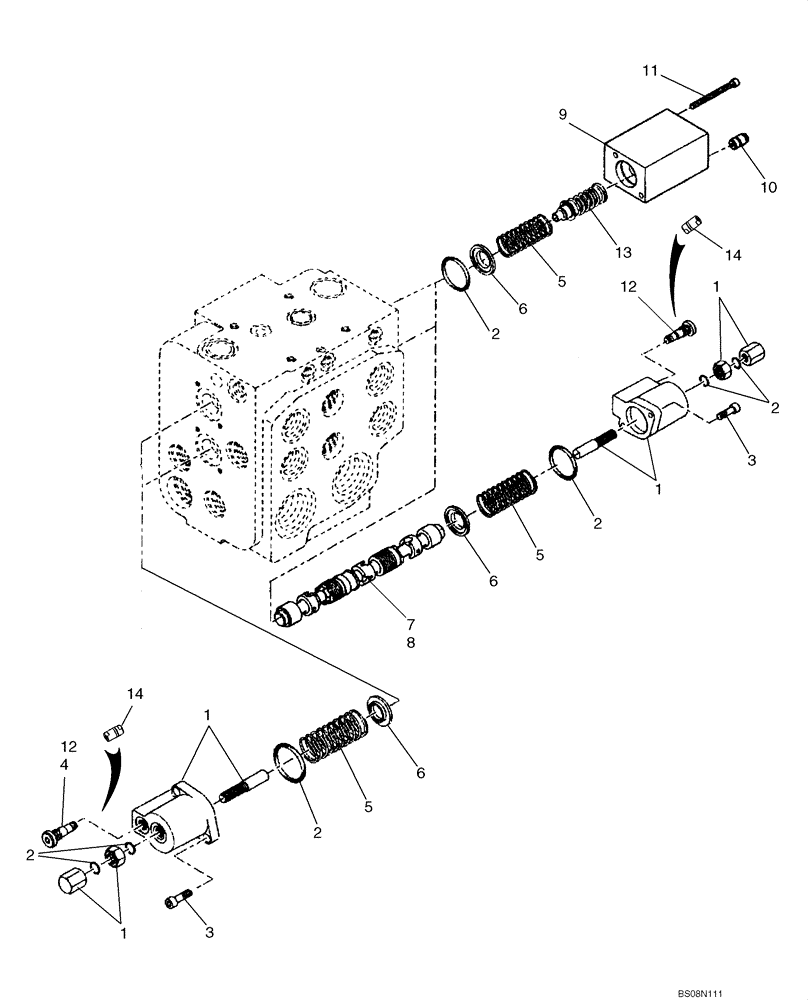

Схема запчастей Case 721E - (08-43A) - VALVE SECTION - BUCKET/BOOM SPOOLS (TWO SPOOL VALVE) (Z-BAR) (08) - HYDRAULICS
2
13
1
6
12
2
2
5
2
14
1
6
8
7
1
2
12
9
14
3
1
11
3
5
5
10
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87539262

HYDRAULIC VALVE

Incl. 1 -13; Replaces 87450850 Valve; Includes Housing Assembly On Figure 08-43

1шт.

1

8602890

COVER

Component Parts Not Serviced Separately

3шт.

2

8602927

SEAL KIT

Load Sensing Control Block; Includes (29) O-Rings, Which Are Not Serviced Separately

1шт.

3

962-6016

HEX SOC SCREW,M6 x 16mm, Cl 10.9

6шт.

4

8602924

CARTRIDGE

M12 x 1,5

3шт.

5

8602917

SPRING

4шт.

6

8602918

RETAINER

Spring

5шт.

7

87311763

SPOOL

Bucket; Lower Spool

1шт.

8

8602895

SPOOL

Boom; Upper Spool

1шт.

9

87311762

COVER

Component Parts Not Serviced Separately

1шт.

10

8604578

CHECK VALVE

1шт.

11

8602892

HEX SOC SCREW,M6 x 105mm

Hex Socket; M6 x 105

2шт.

12

87311766

PLUG

2шт.

13

87311768

SPRING

Compression for Float

1шт.

14

8604578

CHECK VALVE

Throttle Check

1шт.
