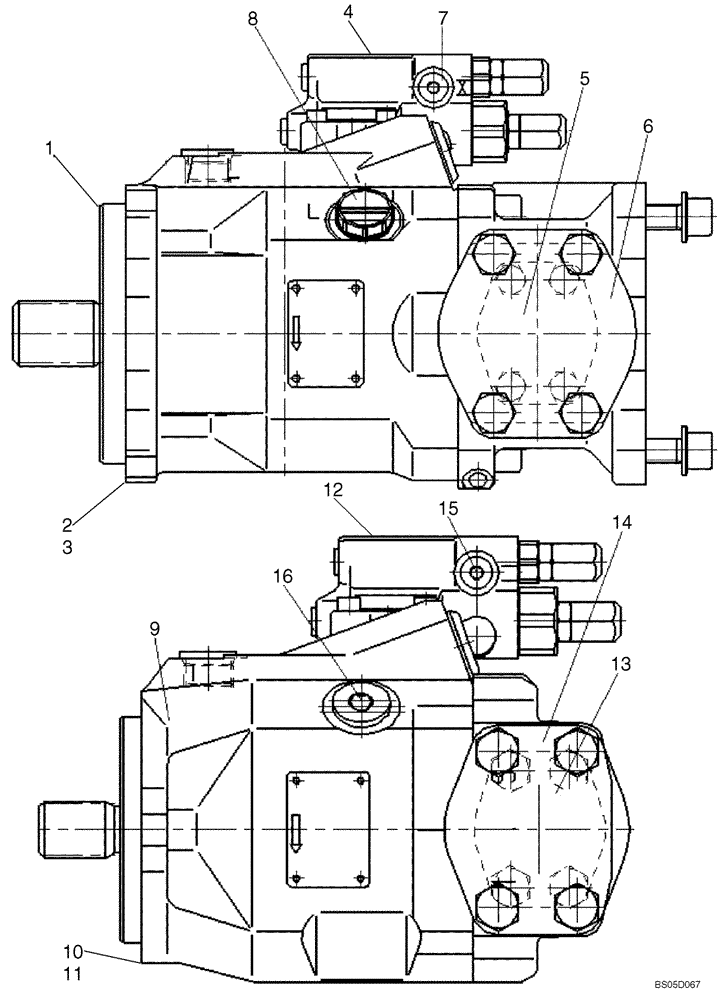

Запчасти Case 721E (08-38) - TANDEM PUMP ASSEMBLY (08) - HYDRAULICS

87629375

HYDRAULIC PUMP

Pump/A Tandem Piston; Replaces 8500387 Pump Used On Some Models; Incl. 8602879 Front Pump, Ref. 1-8; Also Incl. 8602880 Rear Pump, Ref 9-16

1шт.

8602879

PUMP

Front Variable Displacement Pump; Includes 1 - 8

1шт.

8602879R

REMAN-HYD PUMP

721E WHEEL LOADER TIER 3 (NA) (8/06-)

1шт.

8602879C

CORE-INJECTION PUMP

Return Number

1шт.

87665103

SEAL KIT

Complete Front Pump Seal Kit

1шт.

1

8602845

HYDRAULIC PUMP

Inc. 2-4, Also Incl. Parts on Fig. 08-39, 08-40

1шт.

2

8602847

HYDRAULIC VALVE

Base Unit; Incl. Ref. 3; See Figure 08-39

1шт.

3

8602848

HYDRAULIC VALVE

Rotary Group; See 08-40

1шт.

4

8604960

CONTROL VALVE

See 08-40, Ref. 11

1шт.

5

8602812

COVER

Flange Assembly; Includes Flange, Gasket and 4 Screws, Not Serviced Seperately

1шт.

6

8602846

COVER

Flange Assembly; Includes Flange, Gasket and 4 Screws, Not Serviced Seperately

1шт.

7

8604962

SCREW

Seal

1шт.

8

8604961

SCREW

Seal

1шт.

8602880

PUMP

Variable Displacement; Rear; Includes 9 - 16

1шт.

8602880R

REMAN-HYD PUMP

721E Tier 3 (8/06-)

1шт.

8602880C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87665104

SEAL KIT

Complete Rear Pump Seal Kit

1шт.

9

8602811

HYDRAULIC PUMP

Incl. Ref. 10-12; Also Incl. Parts on Figure 08-41, 08-42

1шт.

10

8602814

HYDRAULIC VALVE

Base Unit; Includes Ref. 11; See Figure 08-41

1шт.

11

8602815

PISTON

Rotary Group; See Figure 08-42

1шт.

12

8604960

CONTROL VALVE

See Figure 08-42 Ref. 11

1шт.

13

8602812

COVER

Flange Assembly; Incl. Flange, Gasket, and 4 Screws; Not Serviced Seperately

1шт.

14

8602813

COVER

Flange Assembly; Includes Flange, Gasket and 4 Screws; Not Serviced Seperately

1шт.

15

8604962

SCREW

Seal

1шт.

16

8604961

SCREW

Sealing

1шт.
