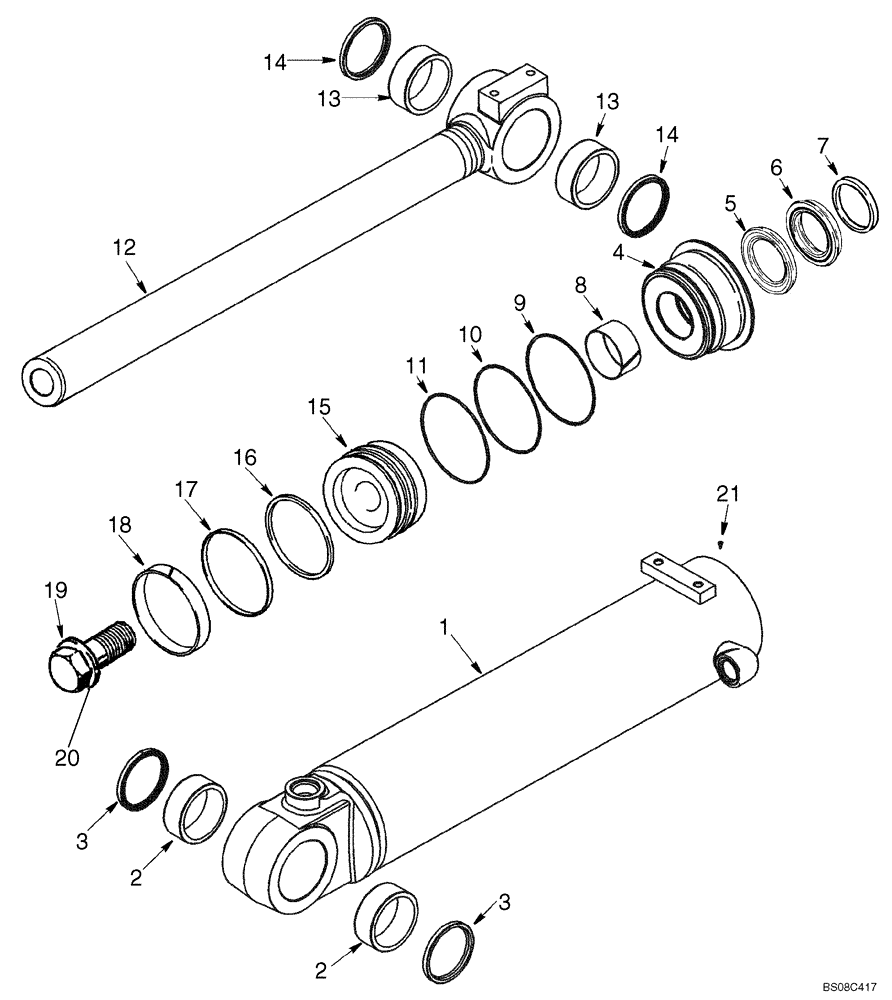

Запчасти Case 721E (08-36) - CYLINDER ASSY - LOADER BUCKET (Z-BAR LOADER) (08) - HYDRAULICS

87441197

BUCKET CYLINDER

Z-Bar Loader, 145.9 ID x 629.4 mm strk; Bucket; Incl.

1шт.

87318786R

REMAN-HYD CYLINDER

721E Tier 3 (8/06-), Reman for New P/N 87441197

1шт.

87318786C

CORE-HYD CYLINDER

Return Number

1шт.

87495411

SEAL KIT

Z-Bar Bucket Cylinder; Incl. Refs. 5 - 9; Also Incl. Seals 238-5246, 87403649, 446195A1, and 1543232C1 Which Are Not Used In This Application

1шт.

1

87432278

BARREL

Incl. Ref. 2

1шт.

2

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

Replaces 446330A1

2шт.

3

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

446335A1

GLAND

Cylinder; Order Components; Incl. Refs. 4 - 11

1шт.

4

446336A1

GLAND

Cylinder

1шт.

1542881C1

SEAL KIT

Incl. Refs. 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

7

D95148

WIPER SEAL

1шт.

8

336042A1

BUSHING

1шт.

9

238-5254

O-RING,0.139" Thk x 5.484" ID, -254, Cl 5, 75 Duro

1шт.

10

446179A1

SEALING RING,135.99mm ID x 141.93mm OD x 1.4mm Thk

1шт.

11

238-5253

O-RING,0.139" Thk x 5.359" ID, -253, Cl 5, 75 Duro

1шт.

12

87432290

PISTON ROD,76.18mm OD x 977.5mm L

76,2 mm dia; Incl. Ref. 13

1шт.

13

87625612

BUSHING,82.86mm ID x 98.53mm OD x 36mm L

Replaces 446330A1

2шт.

14

365523A1

WIPER SEAL

4шт.

87432305

PISTON

Incl. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

Piston

1шт.

16

446339A1

SEAL,140.03mm ID x 147.81mm OD x 9.32mm Thk

1шт.

17

446340A1

SEALING RING,Square, 6.86mm Thk x 126.11mm ID

1шт.

18

446196A1

SEALING RING,Split, 139.7mm ID x 146.05mm OD x 19.05mm Thk

1шт.

19

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 20

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER

1шт.

21

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.
