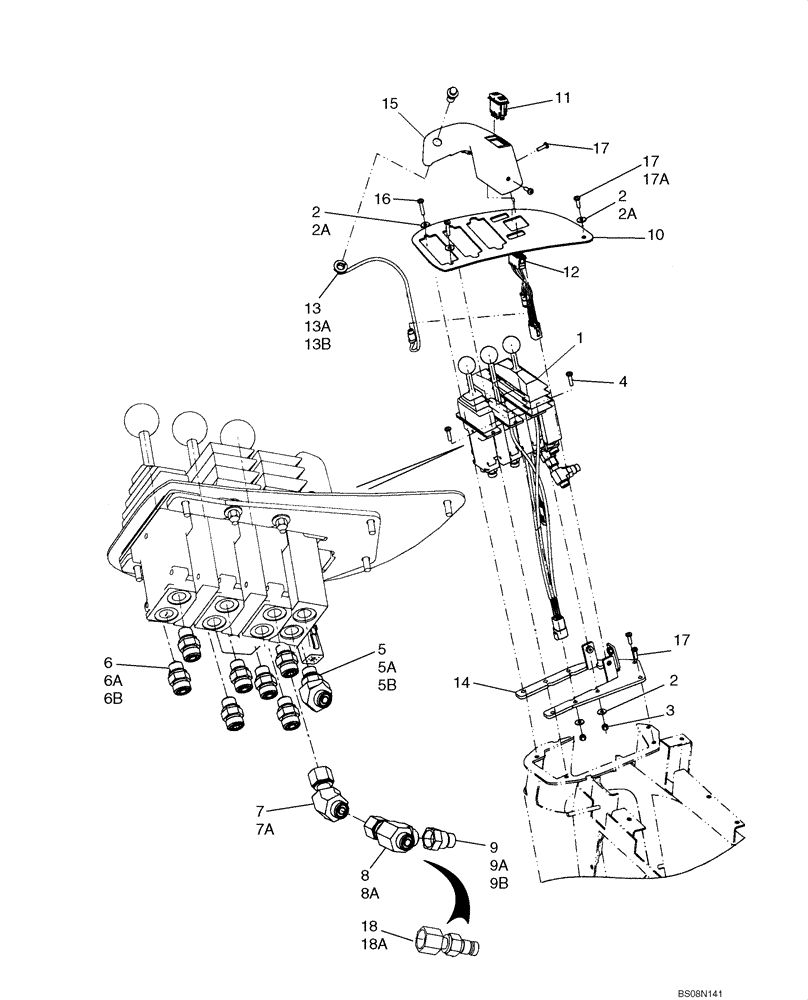

Запчасти Case 721E (08-32) - LOADER CONTROL - THREE LEVER MOUNTING (08) - HYDRAULICS

1

407869A2

VALVE, CONTROL

Three Lever With Three Spool Valve; See Figure 08-52

1шт.

2

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4-7шт.

2a

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

If Used

3шт.

3

832-10406

NUT,M6 x 1, Cl 8

4шт.

4

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

5

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 5A, 5B

1шт.

5a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 6A, 6B

7шт.

6a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

87354477

ELBOW,45 Degree, 11/16"-16 x 11/16"-16 Fem Sw

Incl. 7A

1шт.

7a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

8

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 8A

1шт.

8a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

9

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

Incl. 9A, 9B; If Used

1шт.

9a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

9b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10

87515559

BEZEL

3 Lever; Case

1шт.

11

400833A2

SWITCH

Rocker; Forward/Neutral/Reverse

1шт.

12

87324389

WIRE HARNESS

Forward/Neutral/Reverse Switch

1шт.

13

402390A1

SWITCH

Push Button; Downshift; Incl. 13A, 13B

1шт.

13a

NSS

NOT SOLD SEPARAT

Washer, Lock

1шт.

13b

NSS

NOT SOLD SEPARAT

Nut

1шт.

14

87534053

BRACKET

Single Axis Controller

1шт.

15

87523729

COVER

SwitchTower

1шт.

16

540-711

SCREW,Cross Pan Hd, M6 x 30

2шт.

17

540-719

SCREW,Cross Pan Hd, M6 x 20

5-6шт.

17a

87582901

SELF-TAP SCREW,Pan, #10 - 16 x 3/4"

If Used

1шт.

18

190119A1

COUPLING

Diagnostic; Incl. Ref. 18A

1шт.

18a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.
