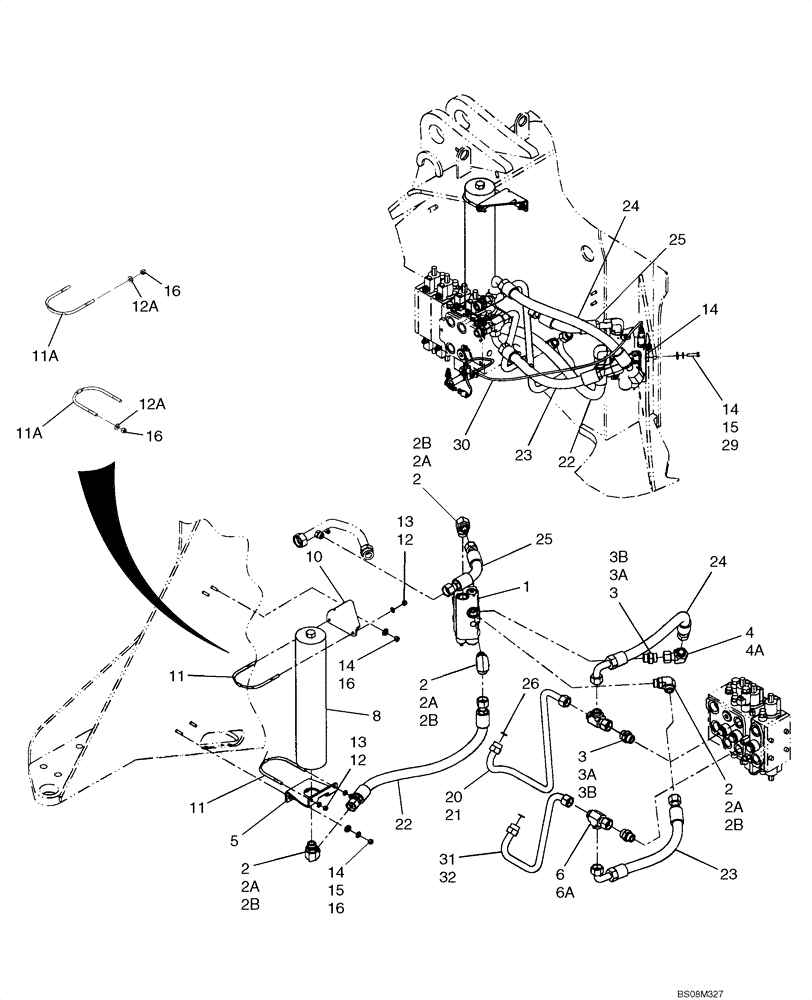

Запчасти Case 721E (08-26) - HYDRAULICS - RIDE CONTROL (08) - HYDRAULICS

1

87393431

VALVE

Ride Control; RSM2-16; See Figure 08-47

1шт.

2

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 2A, 2B

4шт.

2a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 3A, 3B

3шт.

3a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

3b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl. 4A

1шт.

4a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

5

87393646

BRACKET

Accumulator; Gray

1шт.

6

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl. 6A

2шт.

6a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

8

87393434

ACCUMULATOR,3.8L

Ride Control, Black

1шт.

10

87403347

BRACKET

Accumulator; Gray

1шт.

11

L128472

U-BOLT

Standard, 3/8"-16 Thread

2шт.

11a

87492028

U-BOLT

Metric, M10 x 1.5 Thread

2шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

If Used; Used With Standard U-Bolt

4шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

12a

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used; Used With Metric U-Bolt

4шт.

13

231-1446

NUT,3/8" - 16, Gr 5

If Used; Used with Standard U-Bolt

4шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

4-8шт.

20

87442545

HYD TUBE,25 mm DIA

Lift Rod Right; Z-Bar Models

1шт.

21

87442547

HYD TUBE,25 mm DIA

Lower RH; XT Model

1шт.

22

87442515

FLEXIBLE HOSE

Ride Control Accumulator; 903mm ( 35 1/2 in)

1шт.

23

87442516

FLEXIBLE HOSE

Ride Control; Base; 618mm ( 24 5/16 in )

1шт.

24

87305431

FLEXIBLE HOSE

Ride Control; Rod; 791mm ( 31 1/8 in )

1шт.

25

87442518

FLEXIBLE HOSE

Ride Control; Tank; 330mm ( 13 in )

1шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

27

87445673

FITTING

Pressure Switch; XT Model

1шт.

28

446183A1

PRESSURE SWITCH

Rollback; XT Model

1шт.

29

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

30

87453403

WIRE HARNESS

Ride Control Jumper; If Used

1шт.

31

87307826

HYD TUBE

Lift Base Right, For Z-Bar

1шт.

32

87307827

HYD TUBE

Lift Base Right, For XT

1шт.
