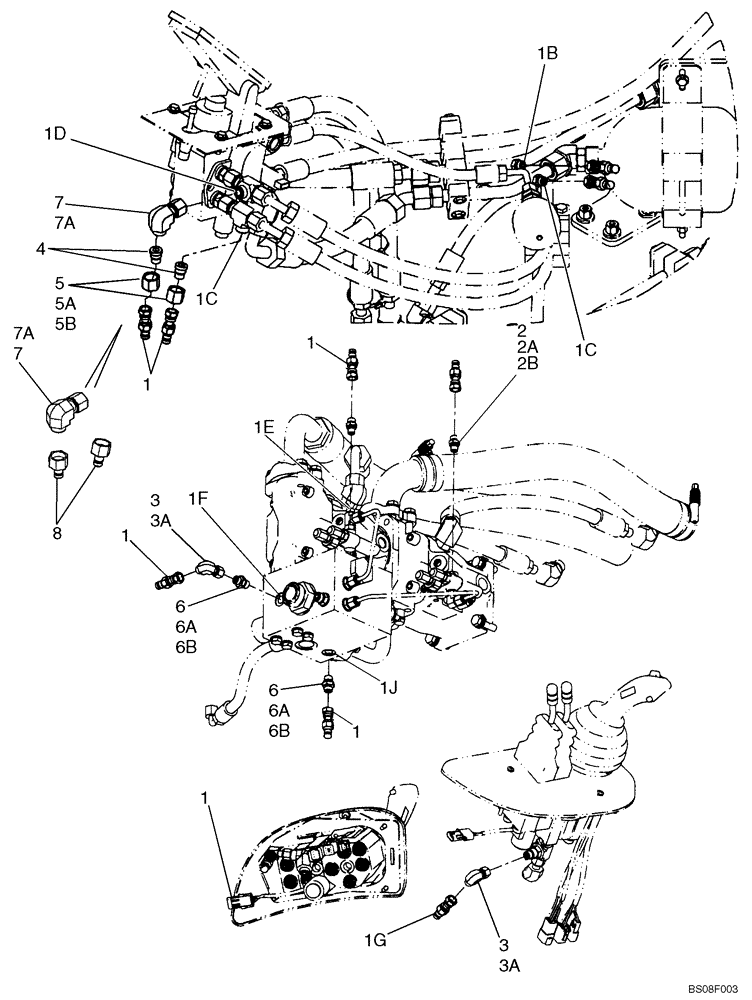

Запчасти Case 721E (08-25) - HYDRAULICS - COUPLER SYSTEM - DIAGNOSTIC LINES (08) - HYDRAULICS

1

190117A1

COUPLING

Diagnostic

6-9шт.

1a

190117A1

COUPLING

Tube; Rear Brake Accumulator

1шт.

1b

190117A1

COUPLING

Tube; Front Brake Accumulator

1шт.

1c

190117A1

COUPLING

Tube; Rear Axle Brake; If Used

1шт.

1d

190117A1

COUPLING

Tube; Front Axle Brake; If Used

1шт.

1e

190117A1

COUPLING

Low Pressure Pump Load Sense

1шт.

1f

190117A1

COUPLING

Low Pressure Pump Discharge Pressure

1шт.

1g

190117A1

COUPLING

Pilot Pressure

1шт.

1h

190117A1

COUPLING

High Pressure Pump Load Sense

1шт.

1j

190117A1

COUPLING

High Pressure Pump Discharge Pressure

1шт.

2

700-100

HYD CONNECTOR,9/16" - 18 Male ORFS x M12 x 1.5 Male ORB

Incl. 2A, 2B

1шт.

2a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl. 3A

1шт.

3a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4

201-110

REDUCER,9/16" - 18 Male ORFS x 13/16" - 16 Female ORFS

Incl. 4A; If Used

1шт.

4a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

5

703-902

TUBE NUT,13/16" - 16

Incl. 5A; If Used

2шт.

5a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

6

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl. 6A, 6B

1шт.

6a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

6b

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

7

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. Ref. 7A

1шт.

7a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

8

190117A1

COUPLING

Diagnostic; If Used

2шт.
