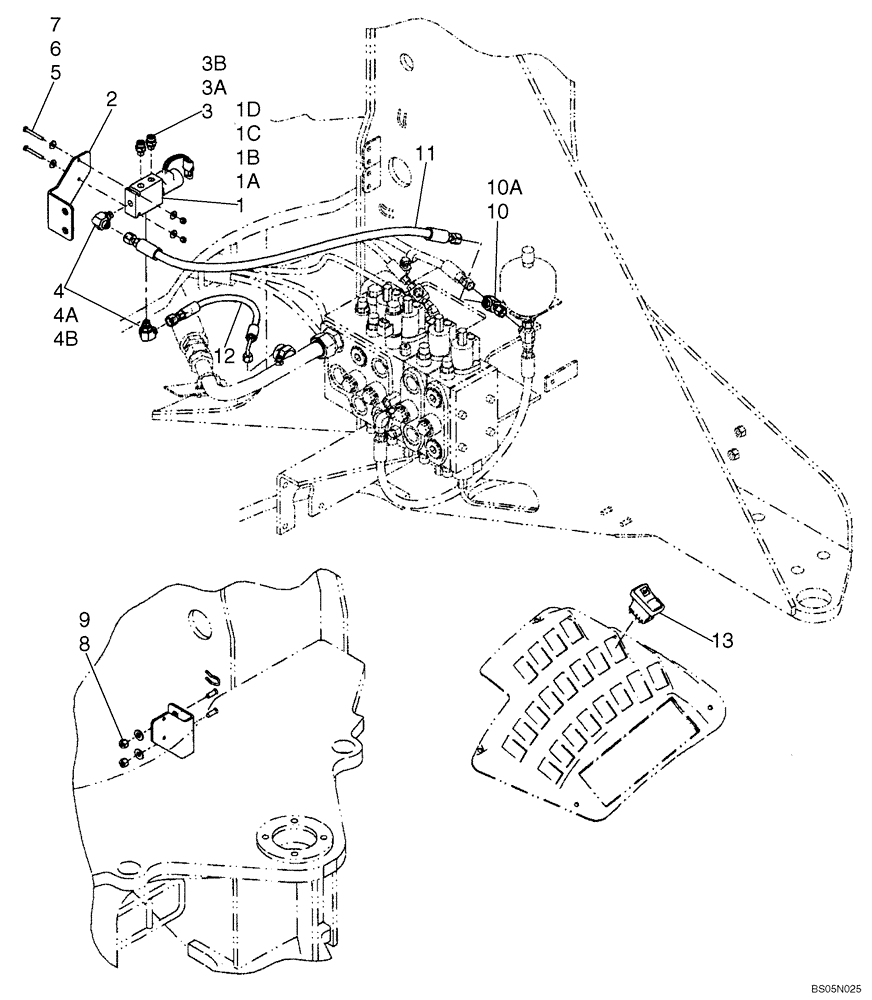

Запчасти Case 721E (08-22) - HYDRAULICS - COUPLER LOCKING (08) - HYDRAULICS

1

379139A1

SOLENOID VALVE

Coupler Locking; Incl. 1 - 1D, Serial Range: -N9F206858

1шт.

1

84139102

SOLENOID VALVE

, Start Serial: N9F206859

1шт.

1a

NSS

NOT SOLD SEPARAT

Body

1шт.

1b

NSS

NOT SOLD SEPARAT

Coil

1шт.

1c

8605216

SOLENOID VALVE

Component Parts Not Serviced Separately; Order 8605153 Seal Kit; Incl. 1C

1шт.

1d

124639A1

SEAL KIT

Includes (4) O-Rings and (6) Backup Rings, Which Are Not Serviced Separately

1шт.

2

442303A1

BRACKET

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 3A, 3B

2шт.

3a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 4A, 4B

2шт.

4a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

5

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

6

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 10A

1шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

3шт.

11

8500756

FLEXIBLE HOSE

325 mm (12-13/16 in); Pressure

1шт.

12

8500757

FLEXIBLE HOSE

400 mm (15-3/4 in); Coupler

1шт.

13

364444A2

SWITCH

Pin Engage

1шт.

14

701-911

PLUG,Hex, 11/16" - 16 ORFS

Not Illustrated; Incl 15

2шт.

15

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.
