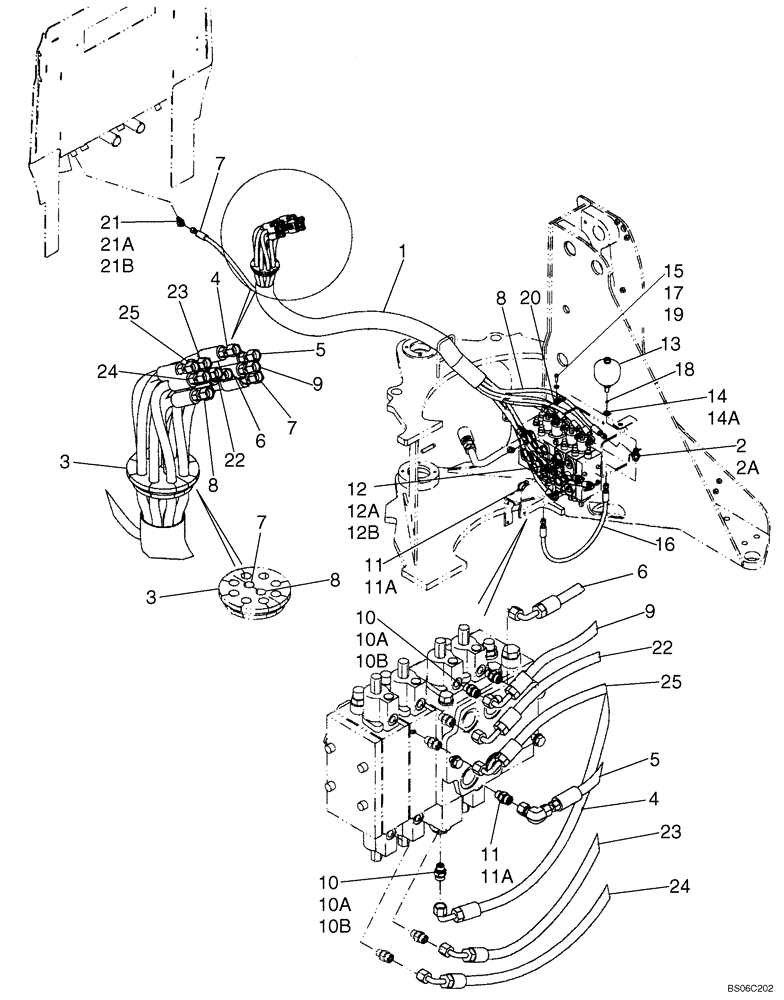

Запчасти Case 721E (08-21) - HYDRAULICS - LOADER CONTROLS - PILOT CONTROL LINES (08) - HYDRAULICS

REF

INSTRUCTION

PILOT CONTROL HOSES

1шт.

1

87333783

HOSE PROTECTION,80.00 mm ID x 1254.00 mm

1шт.

2

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 2A

2шт.

2a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

3

232388A1

GROMMET

2шт.

4

87375607

HOSE ASSY.

2525mm (99-1/2 in); Pilot Raise

1шт.

5

87375605

HOSE ASSY.

2342mm 91-1/4in); Pilot Rollback

1шт.

6

87375604

HOSE ASSY.

2182mm (86 in); Pilot Dump

1шт.

7

87351224

HOSE ASSY.

1230mm (48-1/2in); Hydraulic Tank

1шт.

8

87375609

HOSE ASSY.

2508mm (99 in); Pilot Pressure

1шт.

9

87375606

HOSE ASSY.

2294 mm ( 90-1/3 in ); Pilot Lower

1шт.

10

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 10A, 10B

4-8шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

10b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11

701-319

ELBOW,90° Elbow, 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 11A

2шт.

11a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

12

391859A1

VALVE, CHECK

Incl. 12A, 12B

1шт.

12a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

12b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

13

8501047

ACCUMULATOR

Pilot; Component Parts Not Serviced Separately

1шт.

14

701-909

NUT,11/16" - 16

Incl.14A

1шт.

14a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

15

515-23175

CLAMP,11/16", Insul, 3/8" Bolt

1шт.

16

8500411

FLEXIBLE HOSE

785 mm (30-7/8 in); Pilot Accumulator

1шт.

17

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

18

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

21

700-315

ELBOW,45 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 21A, 21B

2шт.

21a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

21b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

REF

INSTRUCTION

HOSES TO THREE SPOOL VALVE

1шт.

22

87376487

HOSE ASSY.

2424 mm (95-1/2in); Third Spool Pilot

1шт.

23

87375602

HOSE ASSY.

2556mm ( 100-1/2in ); Third Spool Pilot

1шт.

REF

INSTRUCTION

HOSES TO FOUR SPOOL VALVE

1шт.

24

87376486

HOSE ASSY.

HOSE, 2676mm ( 105-1/3in ); Fourth Spool Pilot

2шт.

25

87375601

HOSE ASSY.

2523mm (99-1/2inn); Fourth Spool Pilot

2шт.
